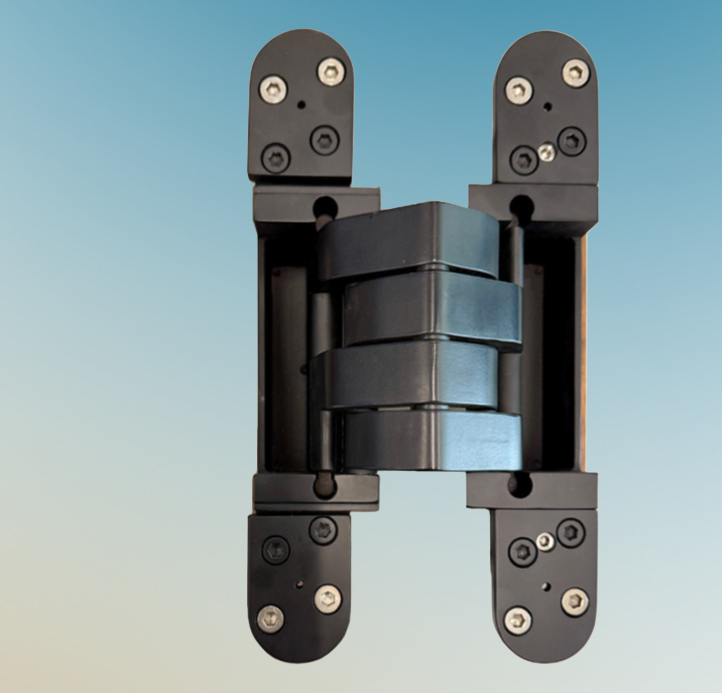

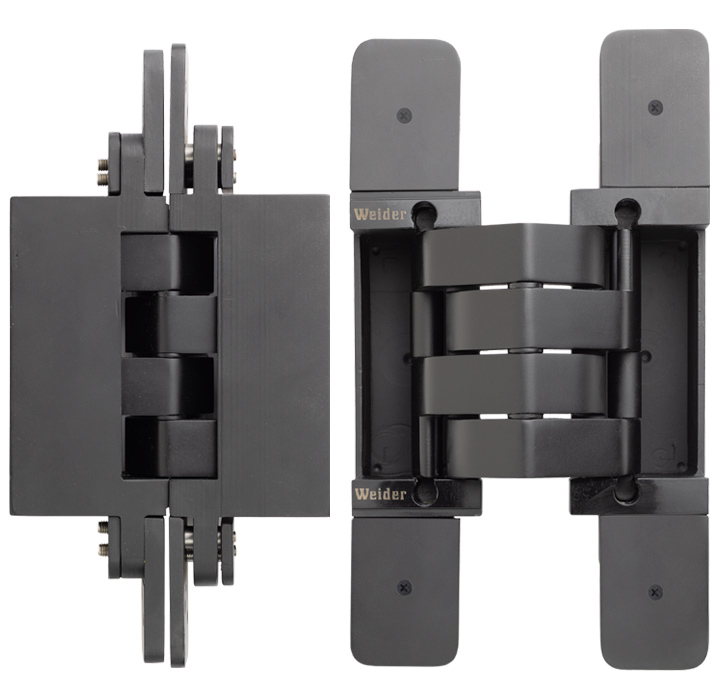

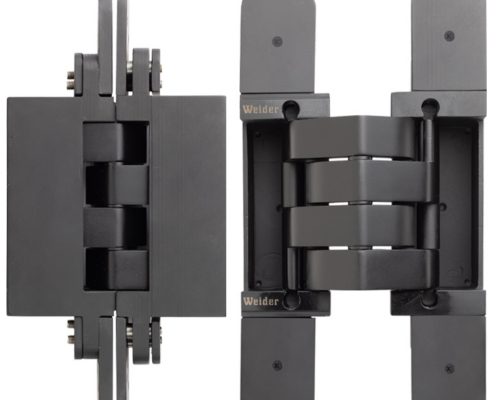

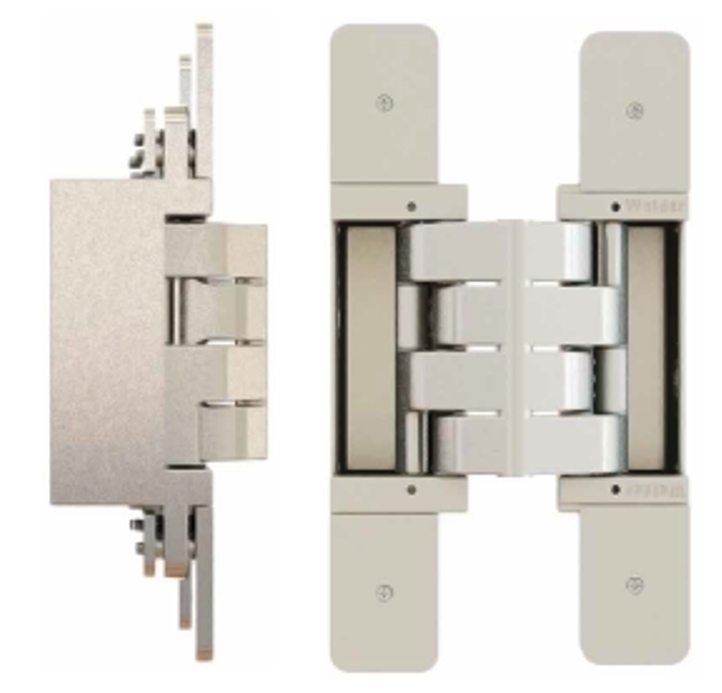

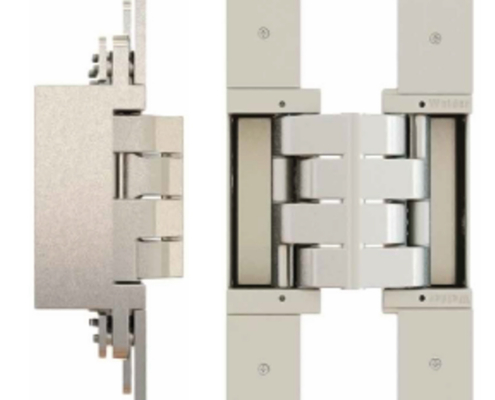

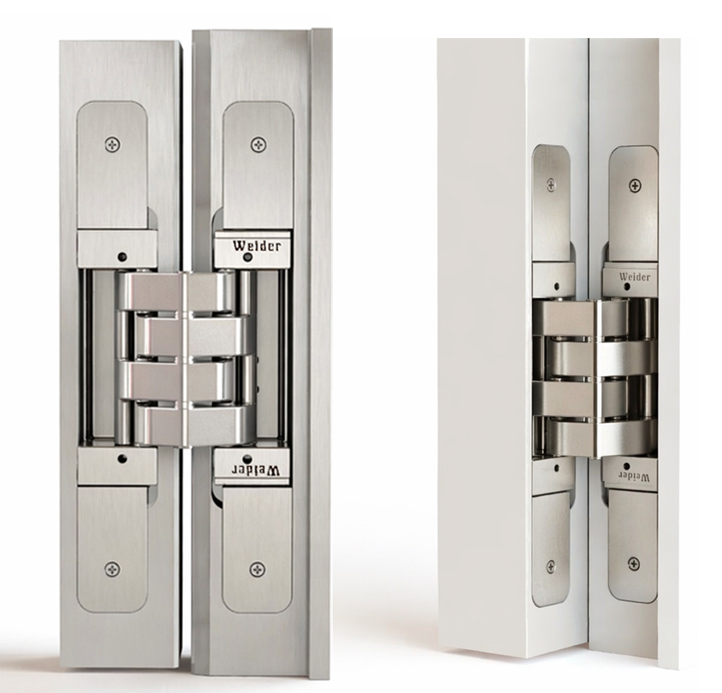

Adjustable Concealed Hinges for Clad Doors

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview

UL available for commercial projects
Heavy Duty		Up to 200kg (440 lbs)*
Very Heavy Duty		Up to 300kg (661 lbs)*

* Using two hinges per door

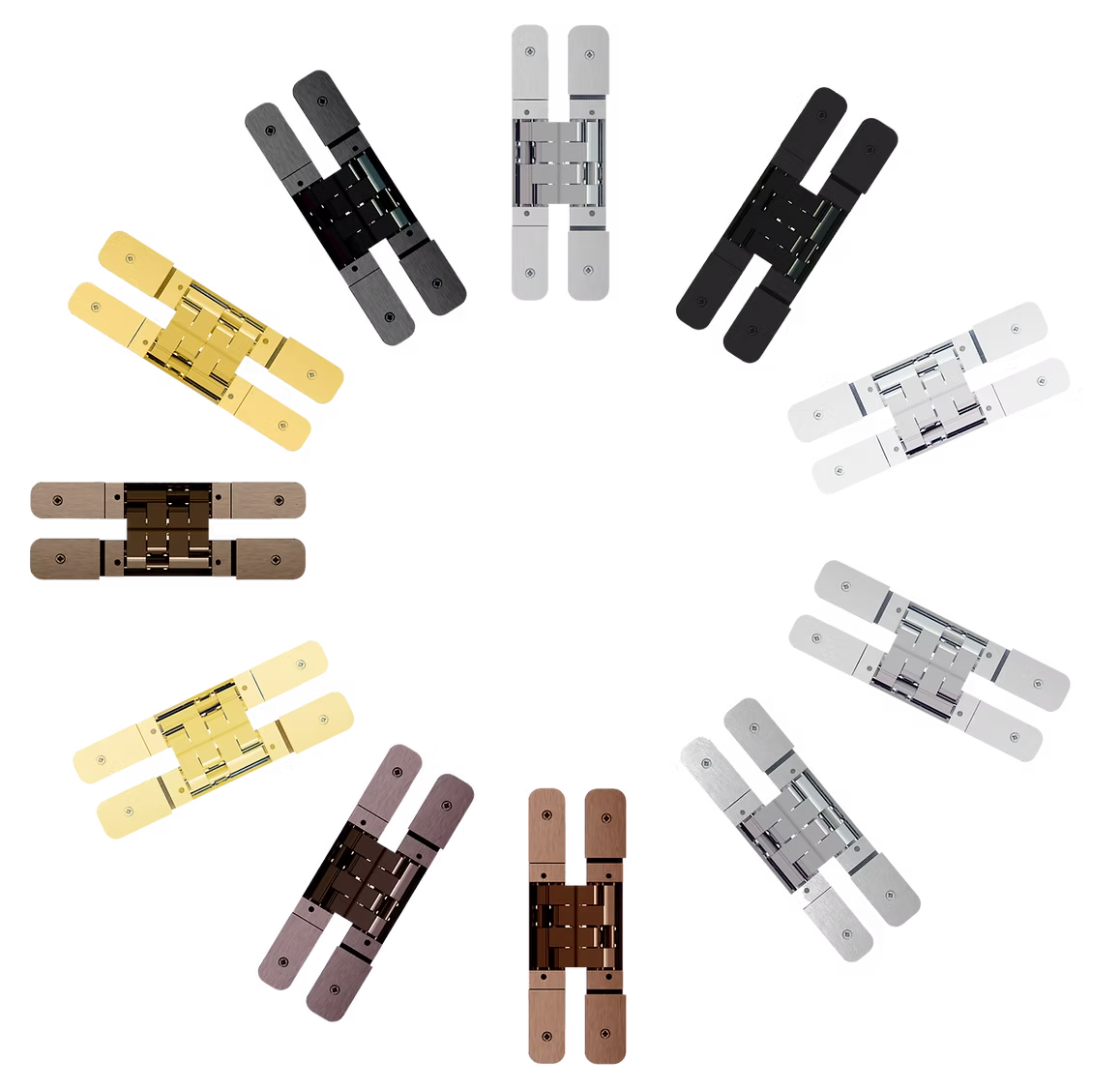

Finish Options

30+ finish and coating options are available. Black & stainless are stocked in USA. 28 other special order finishes, including titanium coating with hardness 9H (greater hardness compared to PVD). Ask for details.

Standard Finishes

Special Order Finishes

Adjustable Concealed Hinges for Clad Doors

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview

UL available for commercial projects
Heavy Duty		Up to 200kg (440 lbs)*
Very Heavy Duty		Up to 300kg (661 lbs)*

* Using two hinges per door

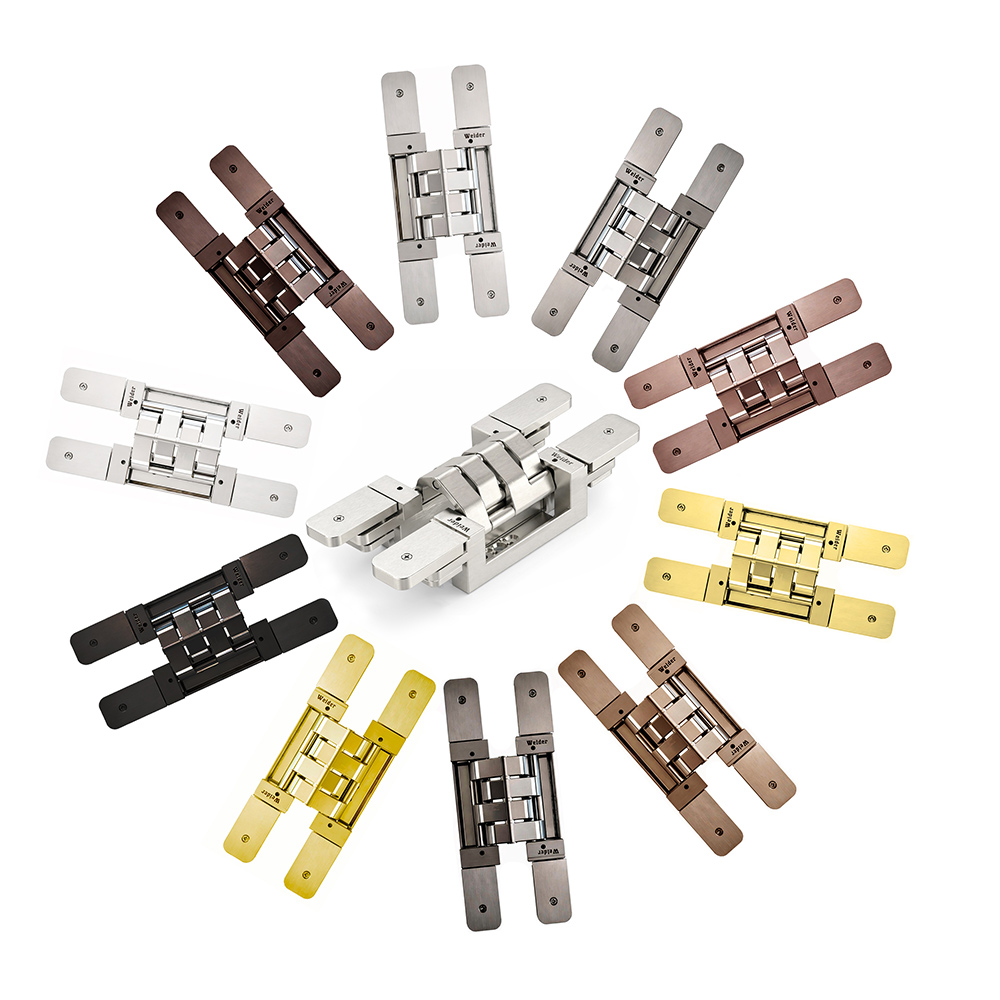

Finish Options

30+ finish and coating options are available. Black & stainless are stocked in USA. 28 other special order finishes, including titanium coating with hardness 9H (greater hardness compared to PVD). Ask for details.

Standard Finishes

Special Order Finishes

Characteristics

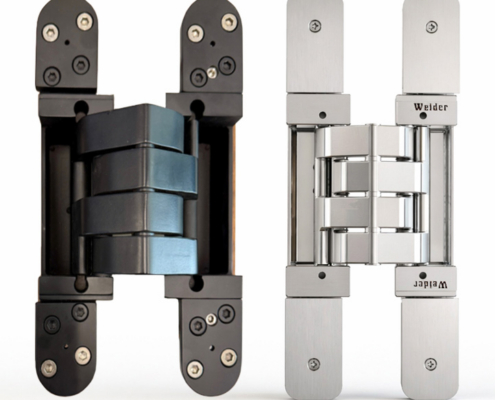

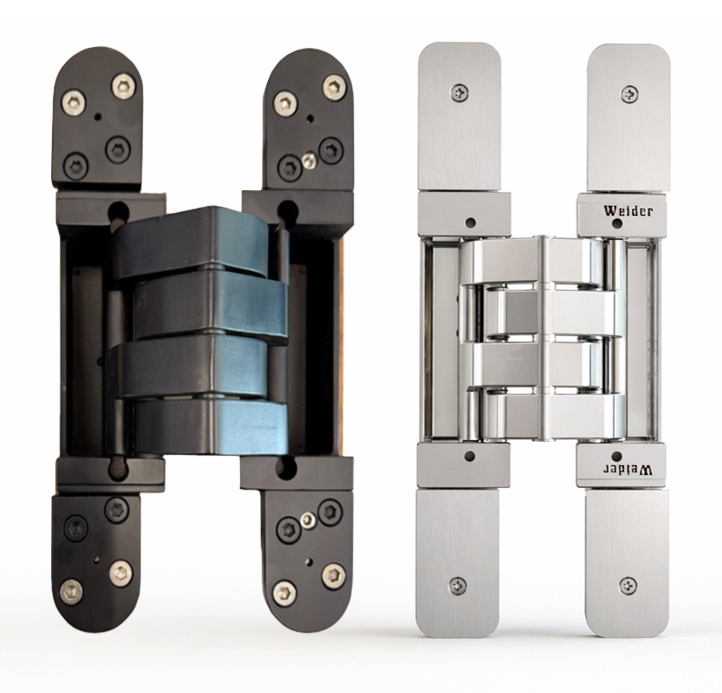

• This is the most robust and heavy-duty cladding hinge available

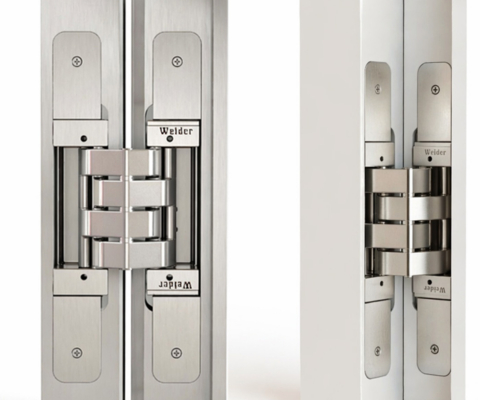

• 3DX concealed hinges for cladding are for doors of wood or metal material

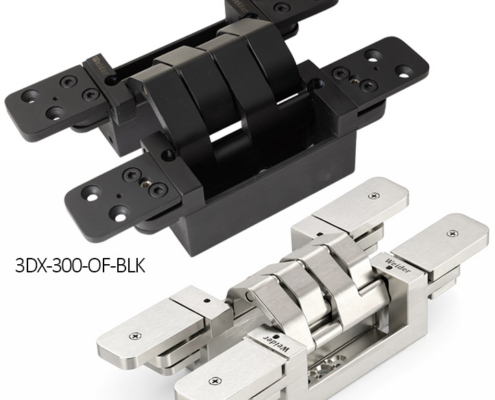

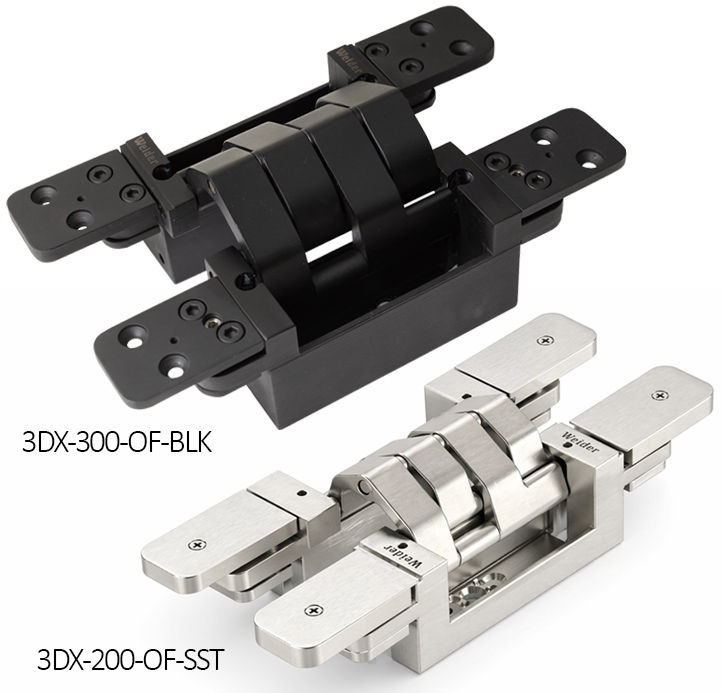

• Version 300 weight capacity up to 300kg (661 lbs) per 2 hinges
• Version 200 weight capacity up to 200kg (440 lbs) per 2 hinges

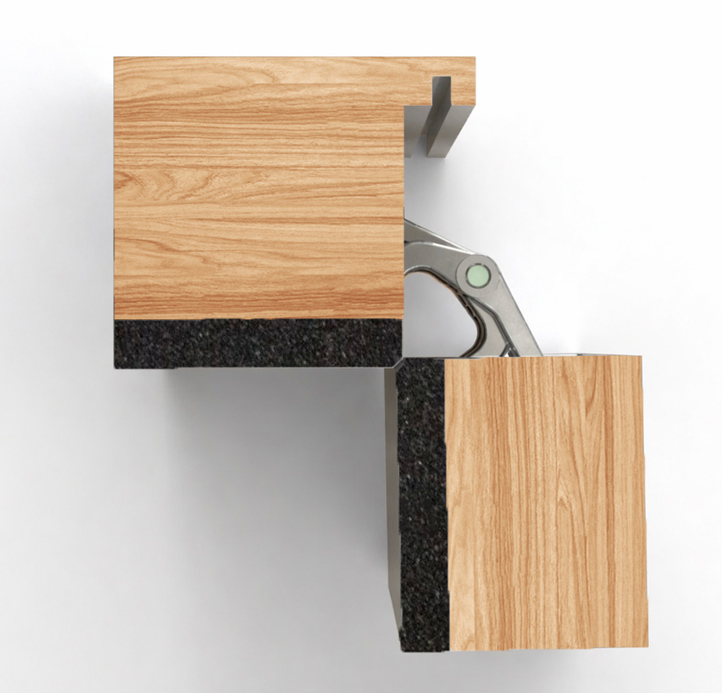

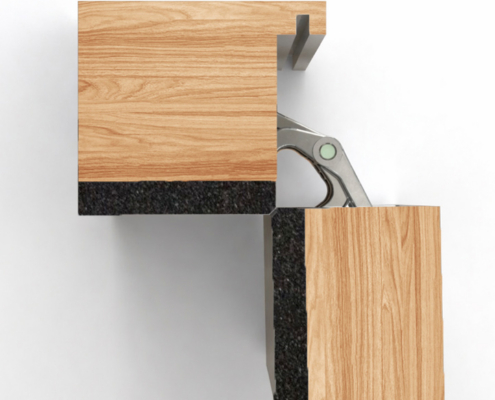

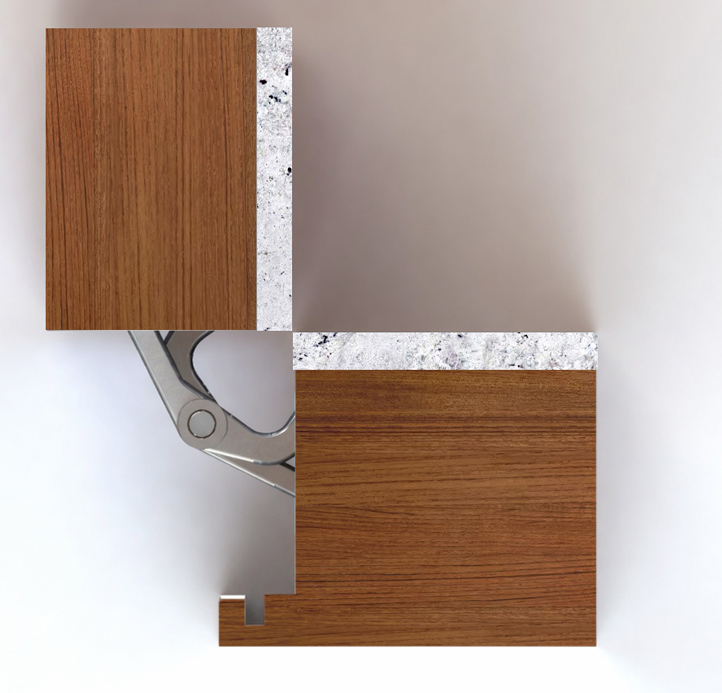

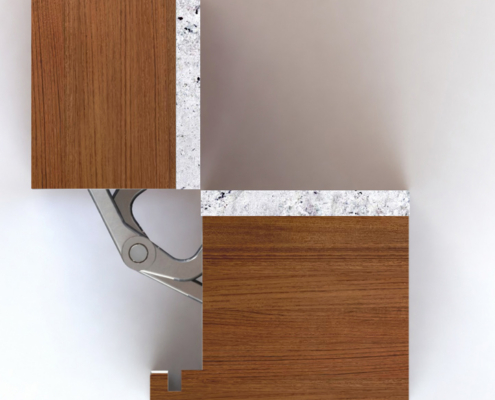

• Suitable for cladding 4-12mm, and up to 16mm with chamfered edge
• 3-dimensional adjustability
• Meets Fire Rated requirements BS EN 1634
• Meets requirement of BS EN1935; 200,000 cycles

Advantages

• Premium quality, precision & durability
• Sound-insulating hinges
• Anti-twist and anti-pull construction prevents sagging and twisting during adjustments
• How do stainless steel hinges save on project cost? With higher quality hinges, less hinges per door are possible, and less repair & replacement occurs from sagging, bending, and warping doors
• Finishes: Black & Stainless stocked-in-USA; 28 by special order
