Vistafold Elite

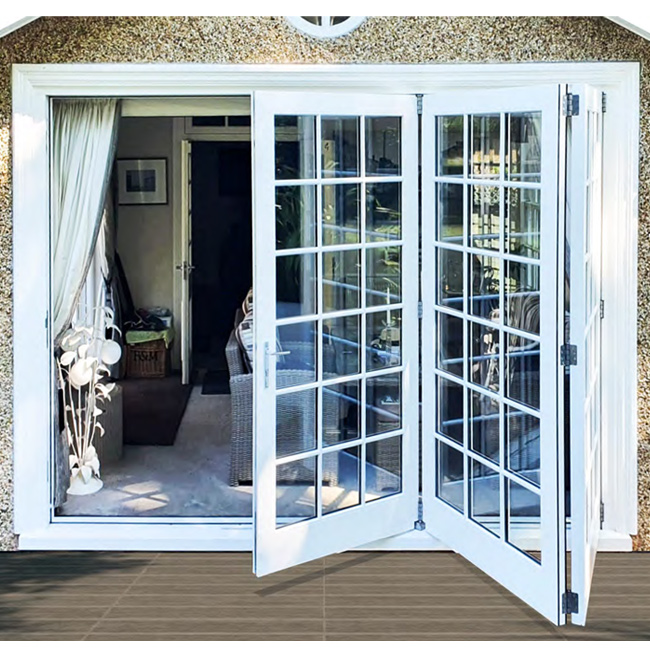

Vistafold is a new Bifold Hardware system, designed for wood panels in configurations of 2, 3 or 4 panels.

PreviousNext
Vistafold Components

Vistafold Elite components are made from high grade aluminum and powder coated to a marine grade finish ideal for coastal areas. They also have nylon bearings rather than steel to maximize durability in harsh conditions.

Vistafold Elite is available for bottom rolling applications, with inline tracks and will fit into a standard door frame design 4” (100mm) wide.

Features

Bottom rolling system
Magnetic catch
Marine grade finishes
4 color options (stainless, black, white, brass)
Cost effective

SYSTEM SPECIFICATIONS
Max Panel Weight: 90kg (198lbs)
Max Panel Height: 2700mm (106.3″)
Panel Thickness: 44-70mm (1.75-2.75″)

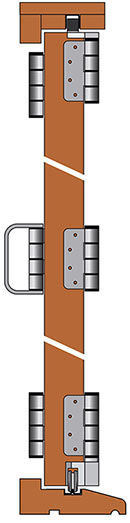

1
2
3
4
5
6
1

Top Guide

2

Intermediate & Even Panel guides

3

Pull-Hinge

4

Center Hinge

5

Intermediate & even panel bottom rollers

6

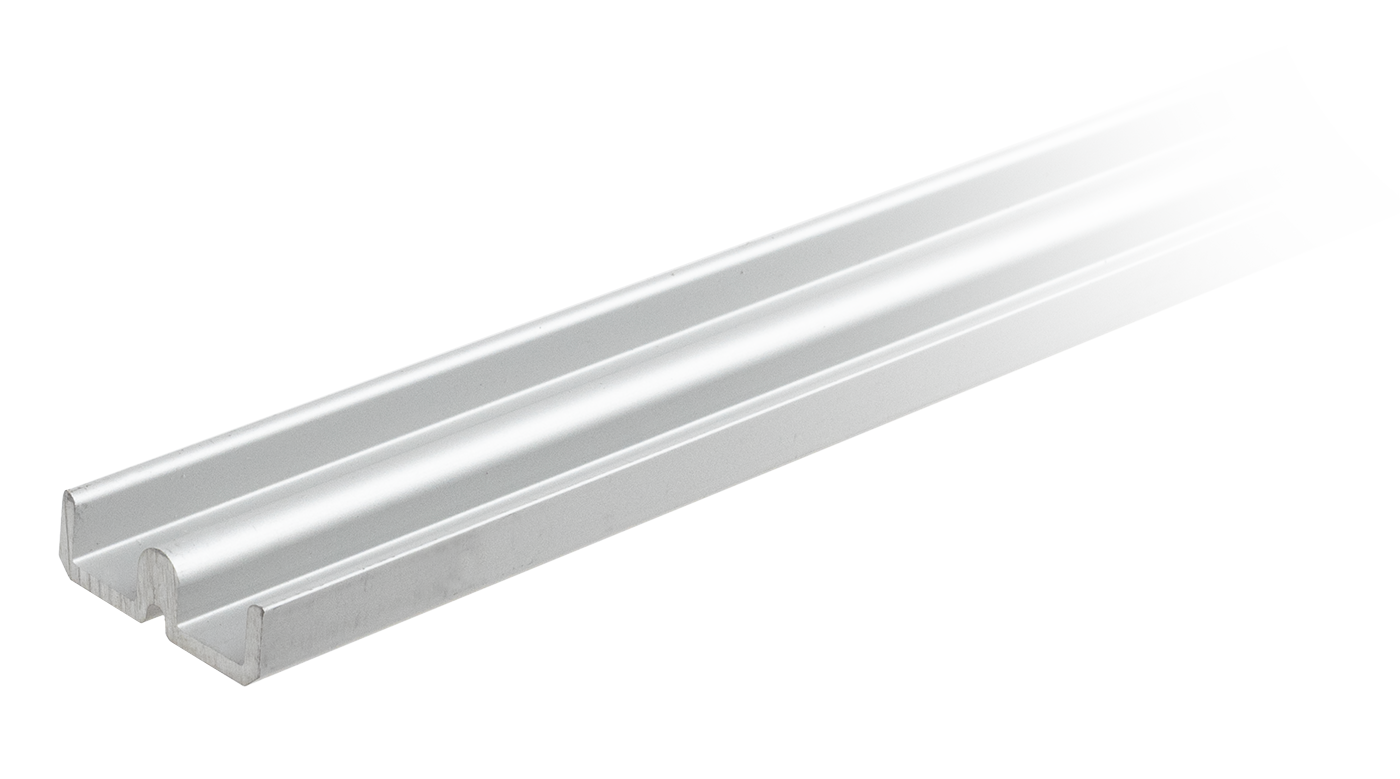

Bottom track

Vistafold Elite

Timber Bifold Hardware

PreviousNext
Vistafold Components

Vistafold Elite components are made from high grade aluminum and powder coated to a marine grade finish ideal for coastal areas. They also have nylon bearings rather than steel to maximize durability in harsh conditions.

Vistafold Elite is available for bottom rolling applications, with inline tracks and will fit into a standard door frame design 4” (100mm) wide.

Features

Bottom rolling system
Magnetic catch
Marine grade finishes
4 color options (stainless, black, white, brass)
Cost effective

SYSTEM SPECIFICATIONS
Max Panel Weight: 90kg (198lbs)
Max Panel Height: 2700mm (106.3″)
Panel Thickness: 44-70mm (1.75-2.75″)

Top Section Components

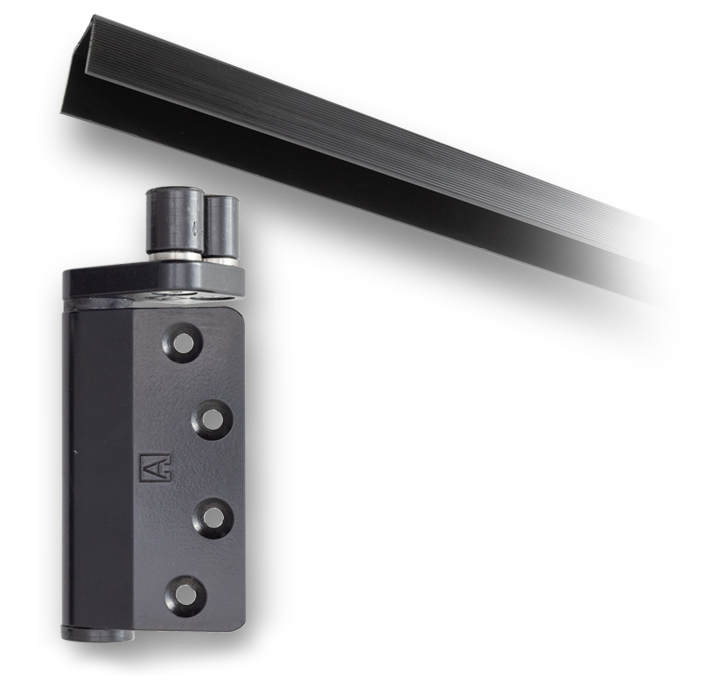

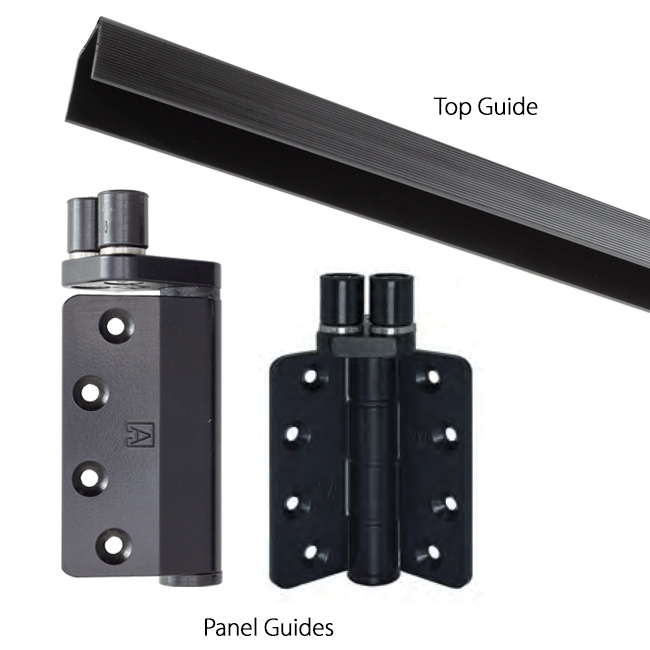

TOP GUIDE COMPONENTS
Intermediate guides, Even Panel guides and top guide track are all designed for quick and easy installation. Designed for doors from 1.75″ to 2.75″ thick.

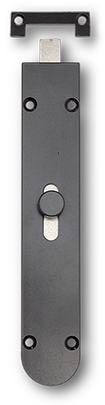

Flush Bolt
Can be installed on top and/or bottom of door

Middle Section Components

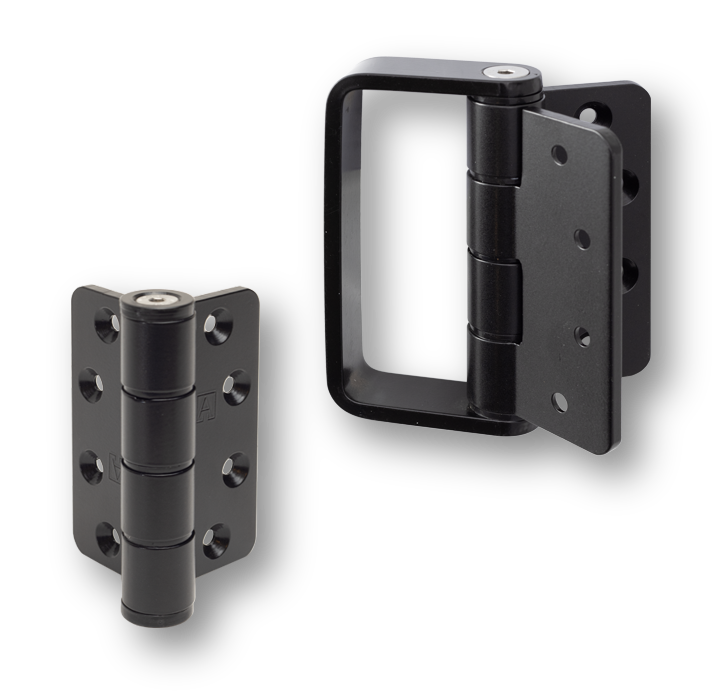

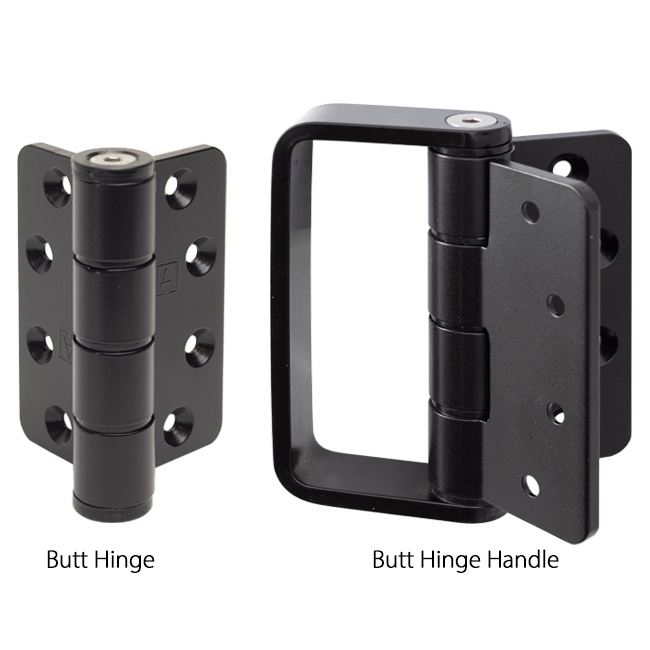

HINGED & PULL-HINGES

Designed for the selective builder/enthusiast, the Vistafold hinge and Pull-Hinge features premium build quality and smooth operation. Designed for doors from 1.75″ to 2.75″ thick panels.

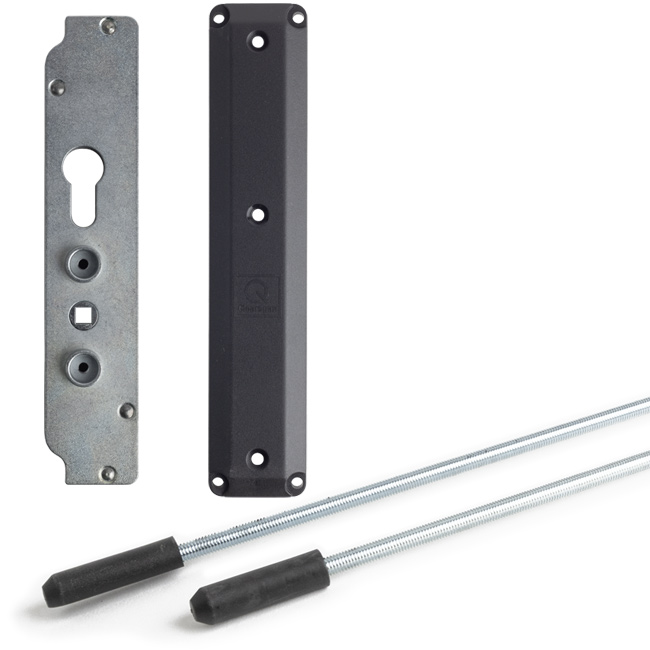

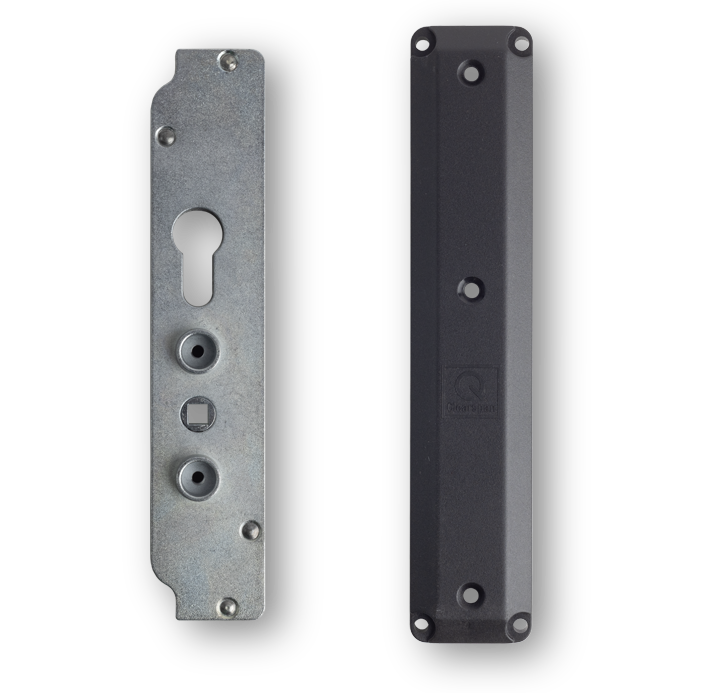

Vistalock Break Point Lock
Vistalock is an alternative to flush bolts on 56mm doors and allows the break out point of a bifold door to be securely locked with a simple 180 degree turn of a handle. Vistalock is suitable for inward and outward folding designs.

Bottom Section Components

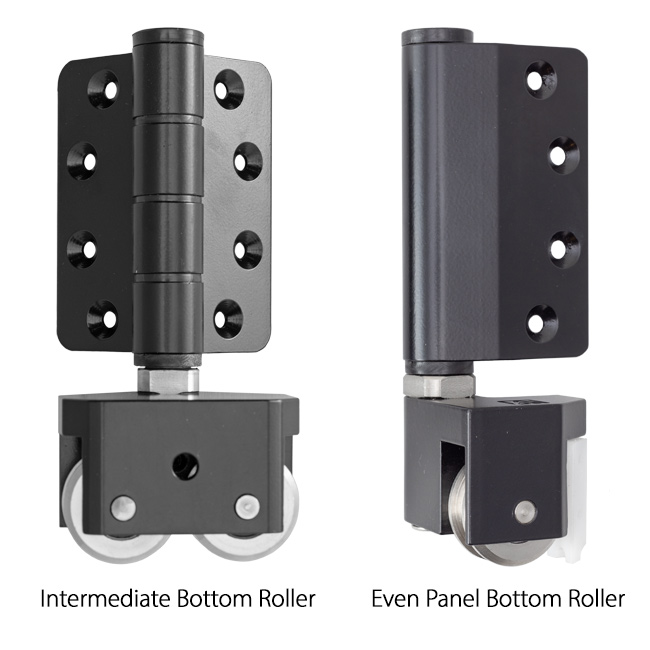

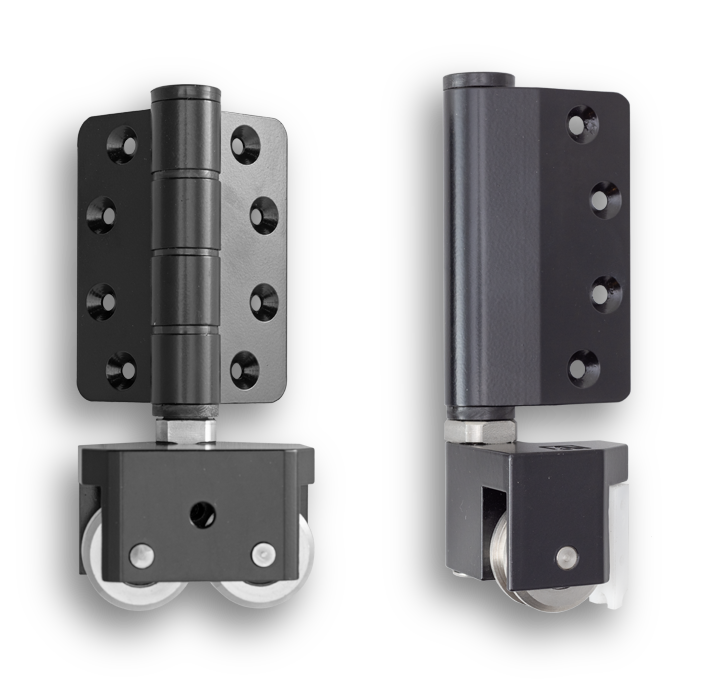

BOTTOM ROLLERS

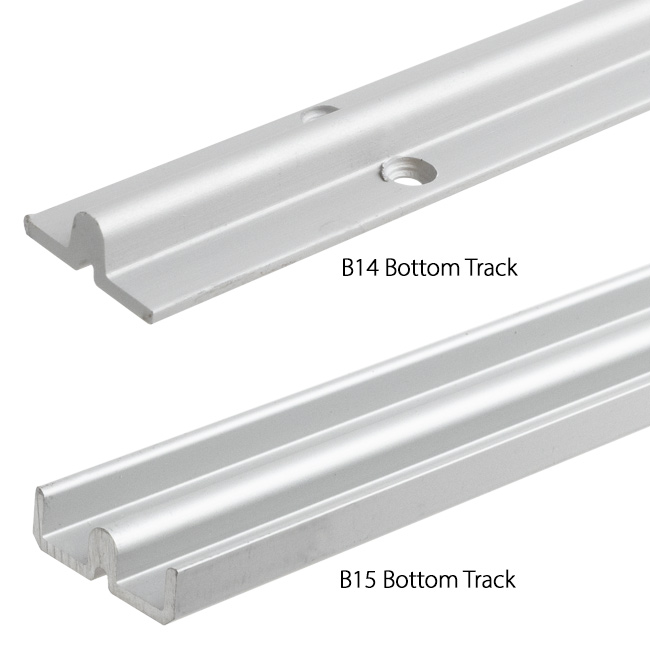

Intermediate bottom rollers and even panel rollers are available. All rollers are attached to door rebates and compatible with both B14 and B15 bottom track.

Documentation

Catalog I

Vistafold Elite Flyer
