Weider Sliding Door & Soft Close Systems

Weider sliding door hardware delivers functionality and quality in an extensive range of solutions for interior applications, available with or without soft close & soft open function.

Why Top-Hung?

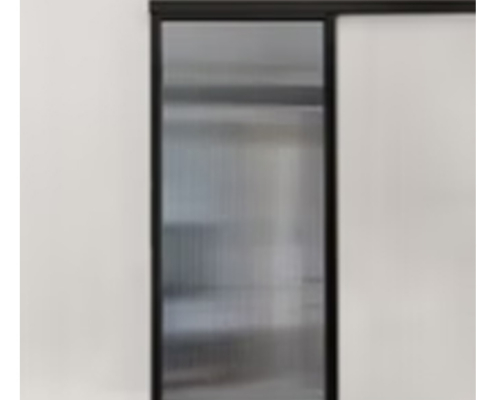

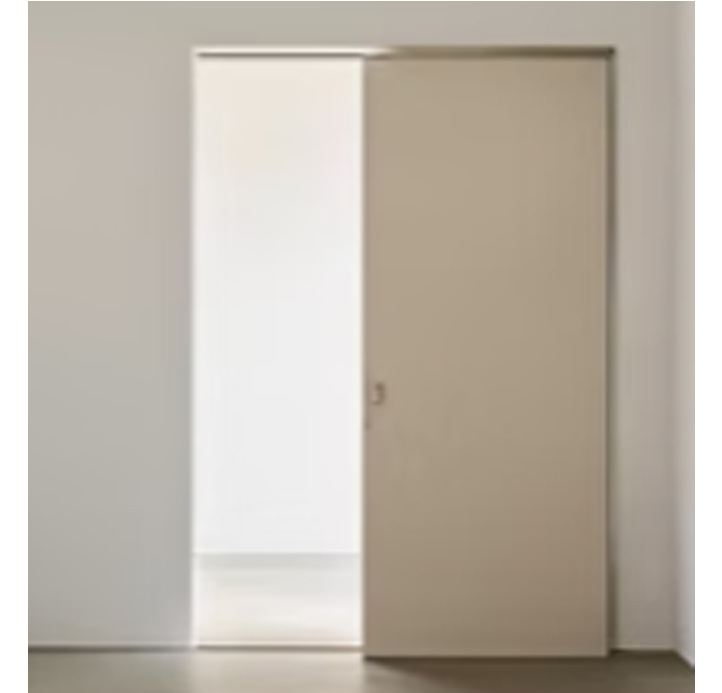

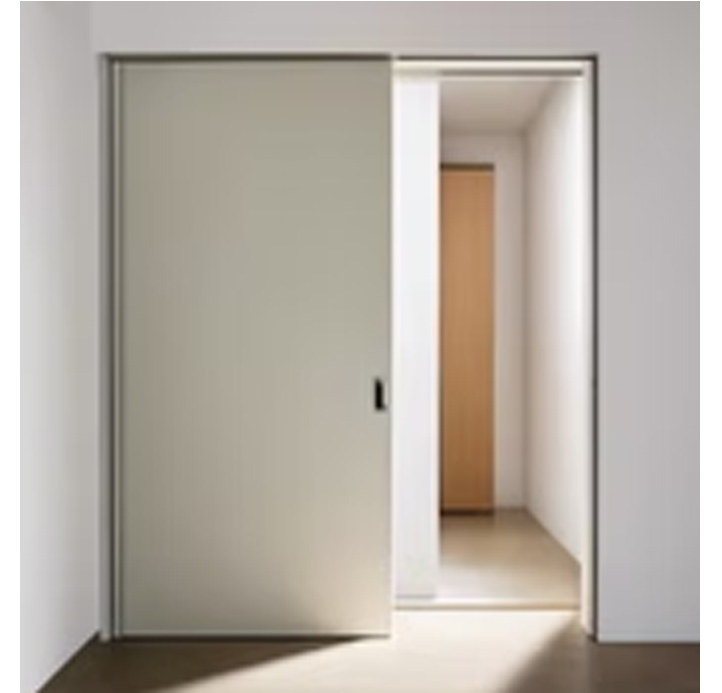

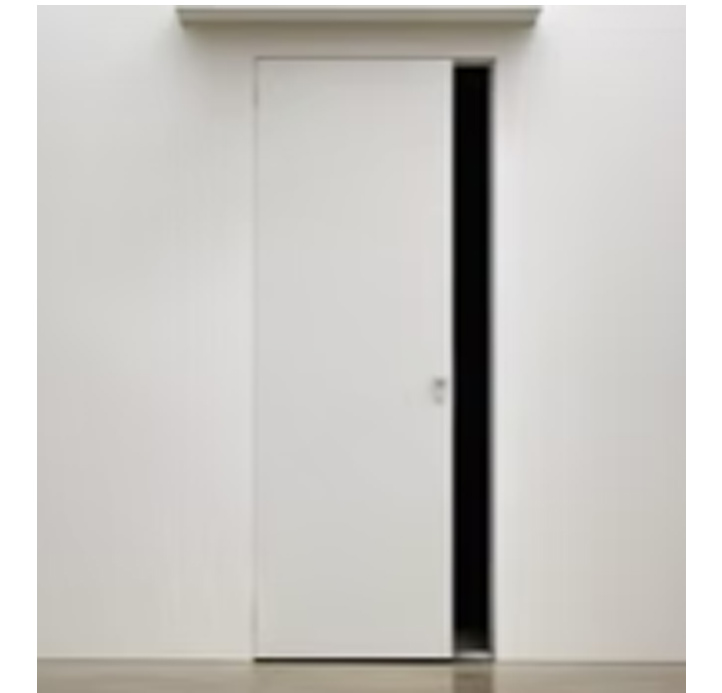

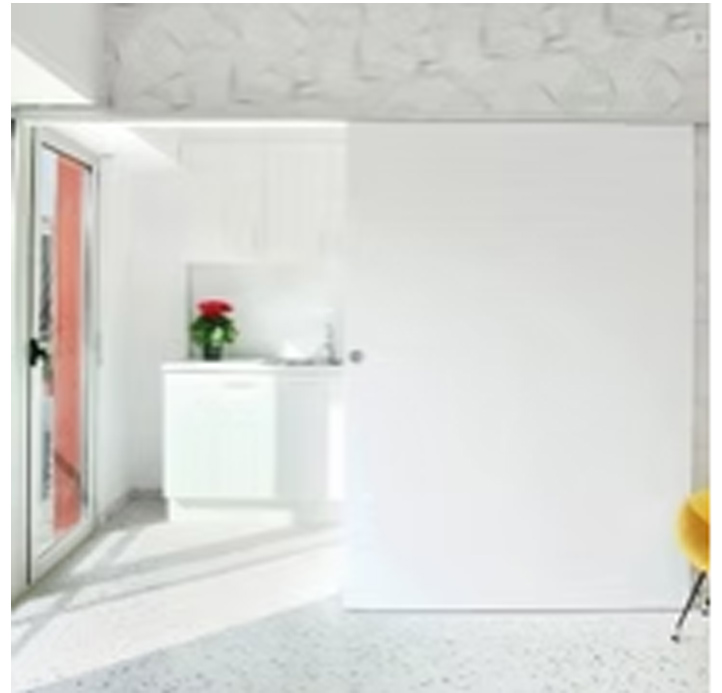

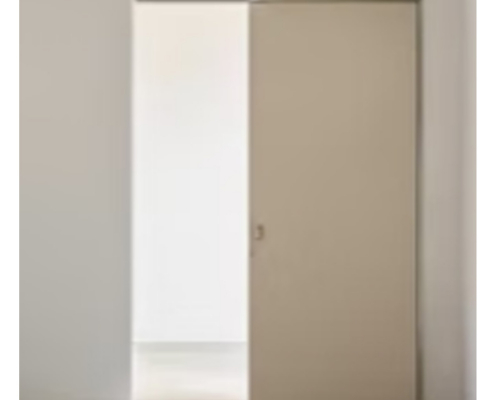

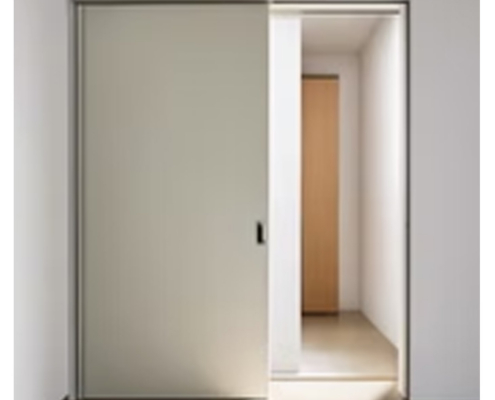

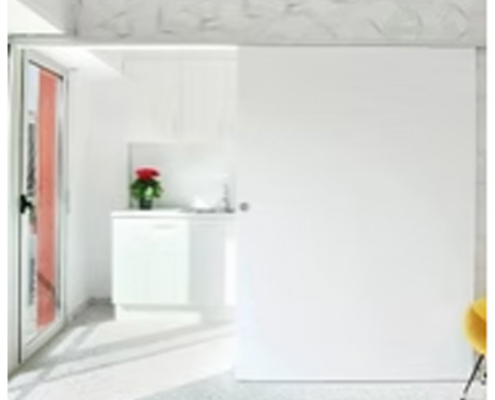

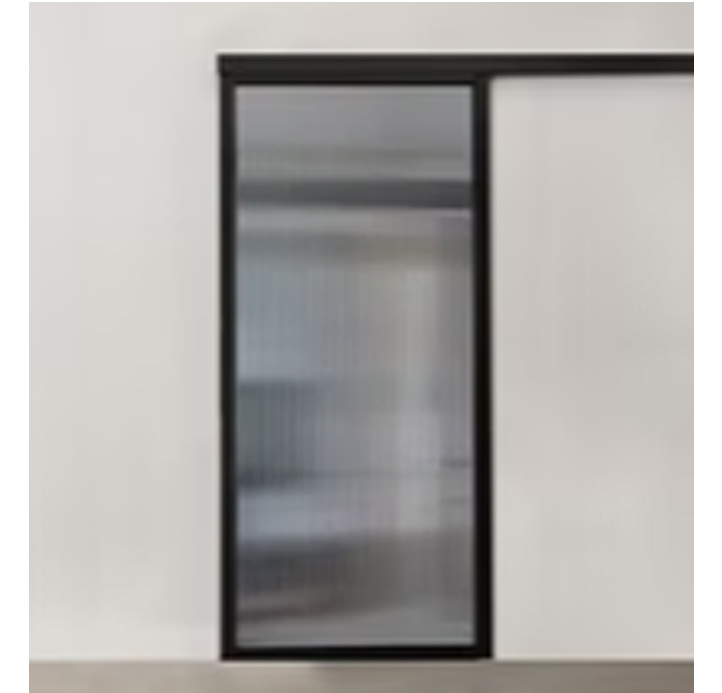

“Top-hung” doors are hung from a top track and carriage system, slide easily and allow a smooth floor—no bottom track, no protruding sill, no trip-hazard.

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview
Weider Sliding Door & Soft Close Systems

Weider sliding door hardware delivers functionality and quality in an extensive range of solutions for interior applications, available with or without soft close & soft open function.

Why Top-Hung?

“Top-hung” doors are hung from a top track and carriage system, slide easily and allow a smooth floor—no bottom track, no protruding sill, no trip-hazard.

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview

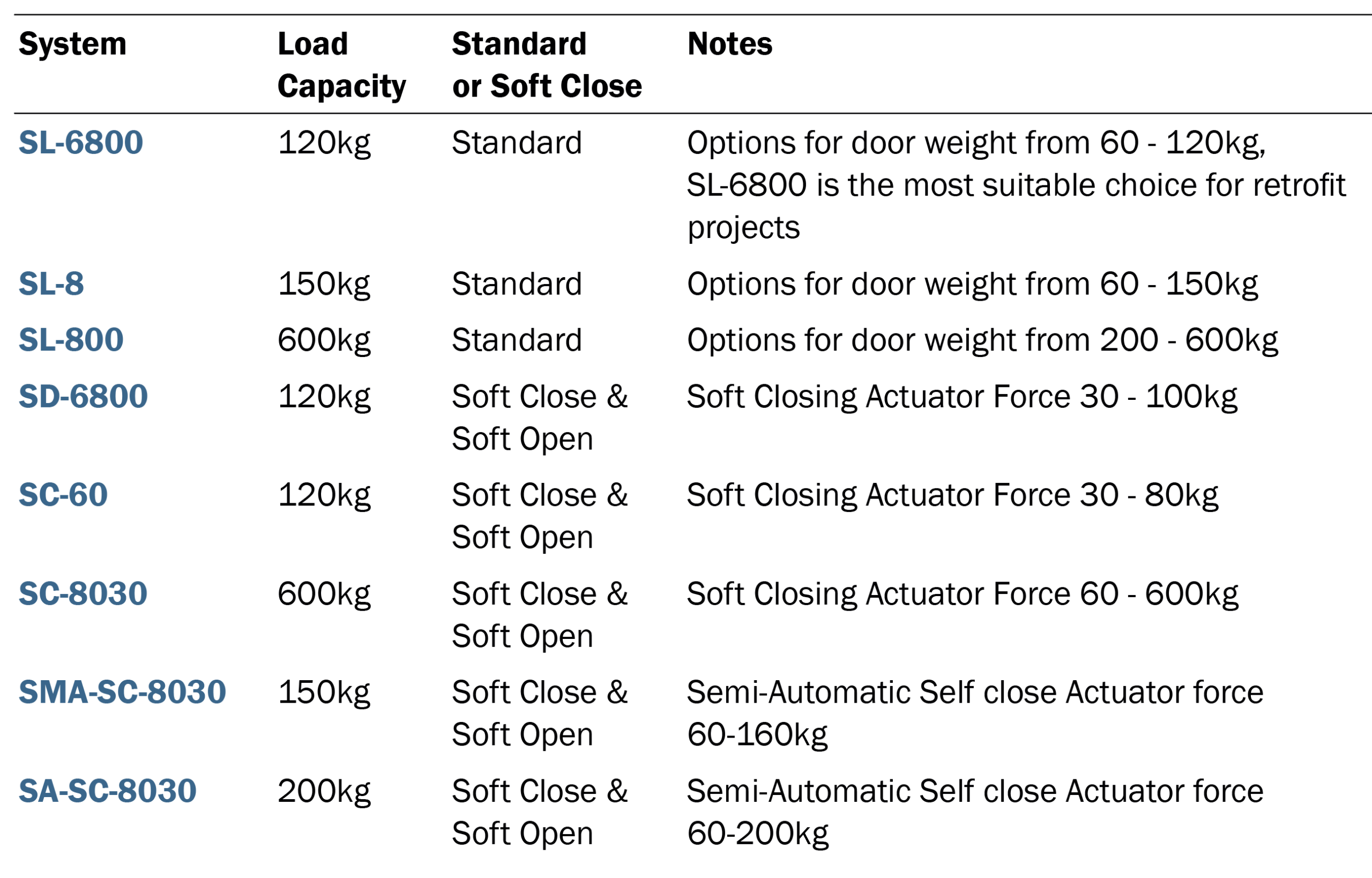

SL-6800 Standard Sliding System

Overview

• Loading capacity 40 to 120kg (264 lbs)
• Max door height 4000mm (157”)
• Max door width 3000mm (118”)
• Door thickness 35-80mm (1.3 – 3.1”)
• SL-6800 is well-suited for retrofit projects or new projects
• For retrofit projects, pair with maintenance section 90mm

SD-6800 Soft Closing System

• Soft closing distance of 120mm using plastic piston
• Soft closing load 40kg to 100kg
• Minimum door width 770mm
• Compatible with SC-SYS, SC-ATS

SL-8 Standard Sliding System

Overview

  • Loading capacity 60 to 150kg (330 lbs)
  • Max door height 4000mm (157”)
  • Max door width 3000mm (118”)
  • Door thickness 35-80mm (1.3 – 3.1”)
SL-800 Standard Sliding System

Overview

• Loading capacity 200 to 600kg (1320 lbs)
• Max door height 4000mm (157”)
• Max door width 3000mm (118”)
• Door thickness 35-80mm (1.3 – 3.1”)

SC-8030 Soft Closing & Opening Sliding System

Overview

• Soft closing distance of 120mm using metal piston
• Soft closing load 60kg to 600kg
• Minimum door width 710mm
• Semi-automatic self-closing option available
• Compatible with SC-SYS, SC-ATS

SC-60 Soft Closing & Opening Sliding System

Overview

• Soft closing distance of 80mm using metal piston
• Soft closing load 40kg to 80kg
• Minimum door width 475mm
• Semi-automatic self-closing option available
• Compatible with SC-SYS-S60, SC-ATS-S60
