FFI Lift Slide Door Hardware

FFI Signature Lift Slide

Why Lift Slide?

Lift slide doors allow larger openings with fewer panels and more glass than standard sliding doors. Lift slide can have much lower air & water infiltration than other sliding door options, has strong security and weather-seal, and has been employed on hurricane-tested doors.

Why FFI Lift Slide?

304 or 430 grade stainless steel with 3,000 hours corrosion resistance
Superior pinned link rod (no field failures!)
10-pack discount pricing
Half gears available
Gears have integrated edge-pull knockout
Available ventilation keep
Adjustable rollers for easy maintenance
Warranty up to 15 years!

FFI Signature Lift Slide

Why Lift Slide?

Lift slide doors allow larger openings with fewer panels and more glass than standard sliders. Lift slide can have much lower air & water infiltration than other sliding door options, has strong security and weather-seal, and has been employed on hurricane-tested doors.

Why FFI Lift Slide?

304 or 430 grade stainless steel
Superior pinned link rod (no field failures!)
10-pack discount pricing
Half gears available
Gears have integrated edge-pull knockout
Available ventilation keep
Adjustable rollers for easy maintenance
Warranty up to 15 years!

FFI Signature Lift Slide

Why Lift Slide?

Lift slide doors allow larger openings with fewer panels and more glass than standard sliders. Lift slide can have much lower air & water infiltration than other sliding door options, has strong security and weather-seal, and has been employed on hurricane-tested doors.

Why FFI Lift Slide?

304 or 430 grade stainless steel
Superior pinned link rod (no field failures!)
10-pack discount pricing
Half gears available
Gears have integrated edge-pull knockout
Available ventilation keep
Adjustable rollers for easy maintenance
Warranty up to 15 years!

Characteristics

FFI has complete lift slide systems and solutions, including stainless steel hardware, handles, tracks, weatherseal and all other accessories, and a 15-year warranty.

Lift slide doors allow larger openings with fewer panels and more glass than standard sliding or folding doors. Architects love its flexibility of design for window walls, pocket doors, curved walls, and corner applications. Lift slide doors maximize views and bring the outdoors in..

Strong security and weatherability
Has much lower air & water infiltration than other sliding door options
Has been employed on hurricane-tested doors

Panels lift up from the sill to allow very large panels to glide easily and quietly, with no friction on the bottom track or weather-seal. Panels can stop at any position for easy access and ventilation. LEED credits can be earned under Indoor Environmental Quality for Natural Ventilation, Daylighting, and Views.

Advantages

For wood, aluminum clad wood, all metal, or PVC panels

Rated to 660 lbs (300 kg) per panel with 2 rollers at 100,000 cycles (ask for details)
(Up to to 1,320 lbs with Tandem Kit)

Minimum 56mm (2¼”) for wood, other materials may vary

For large panels up to 14 ft tall and 10 ft wide or more

Up to 4 locking points at jamb (3 more lock points with extensions)

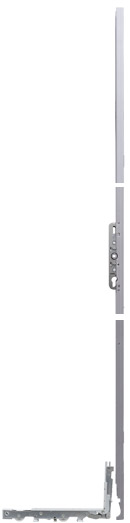

Gears

Exclusive features only from FFI

Stainless steel for all critical moving parts
Maximum corrosion resistance PVDF (Kynar) coated components to meet high performance standards
ASTM B-117 Salt Spray tested to 3,000 hours corrosion resistance.
AAMA 906-21 specification for Sliding Door and Lift Slide Roller Assemblies.
Certification tested by others, with high performance for DPI and Hurricane
100,000 cycle tested and 3000 Hour Salt Spray Tested

Gears in 304 or 430 Grade SST

Integrated edge-pulls for easy operation of pocket doors
Standard one-piece lock for up to 8’8″ tall doors
Extensions available for up to 14′ tall doors
Half-height gears and 10-pack gears provide savings
Aesthetic details such as lock cover pieces to conceal lock-bolt holes

Options for Gears in 304 or 430 grade SST

Gears in Black or Silver PVDF (Kynar) finish (meets AAMA 2605-98)
Backsets: 37.5mm (1½”) or 27.5mm (1-1/12″)
Coaxial lock bolts for meeting sashes, corner applications
Snap-on hardware guides for aluminum or PVC panels
FFI Panel Interlock, in aluminum or brass

HD Assist

Optional Heavy Door Dampening for FFI Lift Slide Gears

Compatible with FFI Lift Slide gears and handles
Compatible with tandem roller configurations
Provides controlled handle motion when lowering a lift slide panel
Recommended as a handle dampener for heavy door panels with a minimum weight of 660 lbs (330kg) or more
Attaches to FFI LAD255SHxx full gears and LAD112SHxx half gears

Carriages

Carriages in 304 or 430 Grade SST

Up to to 660 lbs (300kg) per panel at 100,000 cycles (ask for details)
(Up to to 1,320 lbs with Tandem Kit)
Adjustable rear carriage to move panels up or down (3mm height adjustment using a 6mm hex wrench)
Brushes on both front and rear carriage provide self-cleaning by sweeping dust & debris from the track
New ventilation keep to allow for natural ventilation

Front Carriage

Rear Carriage (Adjustable)

Options for Carriages in 304 or 430 grade SST

Tandem roller kits for panels up to 1,320 lbs
Ventilation keep stops the front carriage for natural ventilation

Common Configurations

Tested to 100,000 Cycles

FFI SST Lift Slide System has completed functional testing to 100,000 cycles.

Hurricane Testing

Manufacturers using the FFI SST Lift Slide System have passed hurricane testing and achieved high DP ratings. Ask FFI for help with recommendations and discounted product samples.

15-Year Warranty

Warranty against manufacturing defects is 15 years. For lift slide panels these components are designed to be used together and not mixed with other brands.

Let’s Get Started

Want CAD files or BOM Calculator? No problem!
