Concealed Hinges in Stainless Steel

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview

UL available for commercial projects
Medium Duty		Up to 120kg (264 lbs)*
Heavy Duty		Up to 160kg (352 lbs)*
Cladding Hinge		Up to 300kg (661 lbs)*

* Using two hinges per door

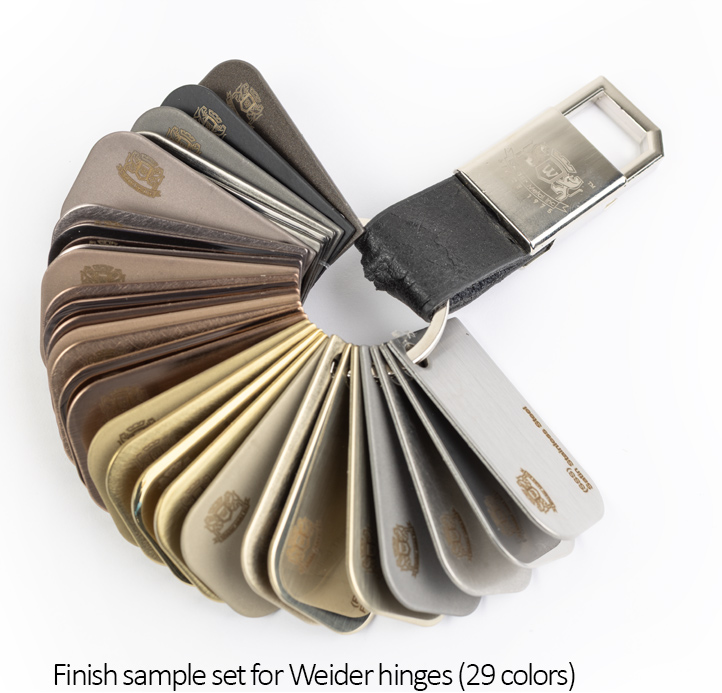

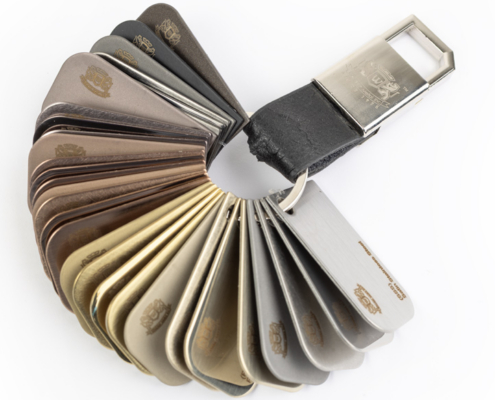

Finish Options

30+ finish and coating options are available. Black & stainless are stocked in USA. 28 other special order finishes, including titanium coating with hardness 9H (greater hardness compared to PVD). Ask for details.

Standard Finishes

Special Order Finishes

Concealed Hinges in Stainless Steel

Weider Metal Australia

Weider Metal Australia is known for forward innovation, durability and sustainability. Their many quality products, including concealed hinges, sliding partitioning systems, pocket door solutions, access control systems, and acoustic door hardware. FFI is the exclusive North American distributor for Weider Metal Australia. To see more Weider products, visit https://www.weidermetal.com/ (price & sales inquiries to Weider will be referred back to FFI). For price & sales inquiries, contact FFI, https://fenestration.net/contact/ .

Overview

UL available for commercial projects
Medium Duty		Up to 120kg (264 lbs)*
Heavy Duty		Up to 160kg (352 lbs)*
Cladding Hinge		Up to 300kg (661 lbs)*

* Using two hinges per door

Finish Options

30+ finish and coating options are available. Black & stainless are stocked in USA. 28 other special order finishes, including titanium coating with hardness 9H (greater hardness compared to PVD). Ask for details.

Standard Finishes

Special Order Finishes

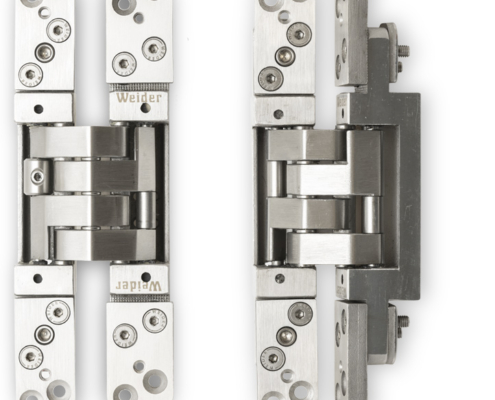

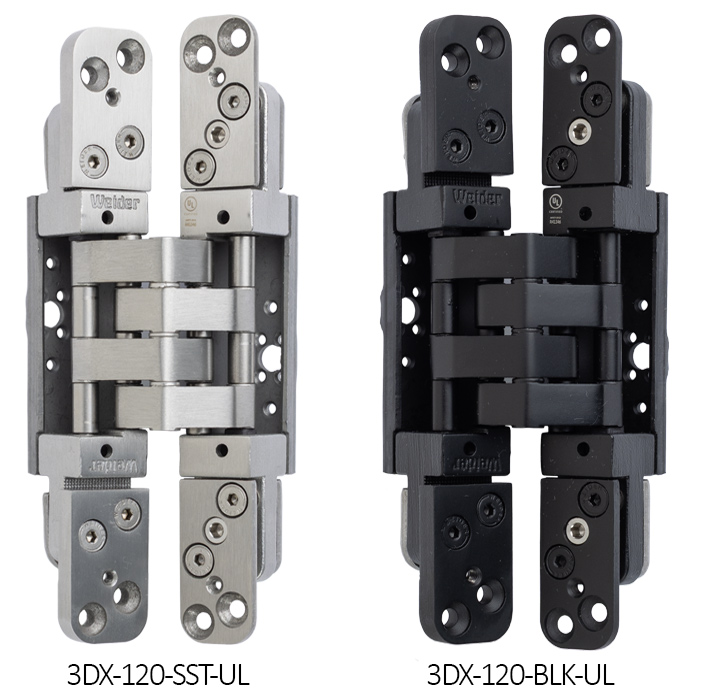

Characteristics – Concealed Hinges

• Material: 304 grade Stainless Steel (standard for these hinges while a special order upgrade for other brands)
• UL listed hinges for commercial projects; fire-rated to 3 hours, with certificates for US and Canada
• For flush and rabbeted flush doors
• Two versions: For doors up to 120kg (264 lbs) and 160kg (352 lbs)
• For wood, steel, and aluminum doors and frames

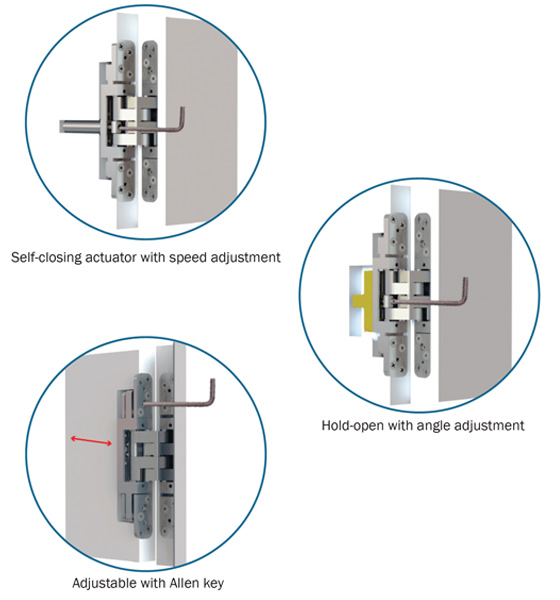

• 3D adjustments for height, compression (to frame), and side (to plumb the door)
• Soft-close hinge with hydraulic function and constant rate of speed in closing (adjustable closing range of 3-5 seconds).
• Hold-Open & Self-Closing functions can be used on the same door!
• Hold open hinge also functions as a stop (i.e. after opening degree is set, it won’t open past that point)
• Hold open range: 75-180 degrees

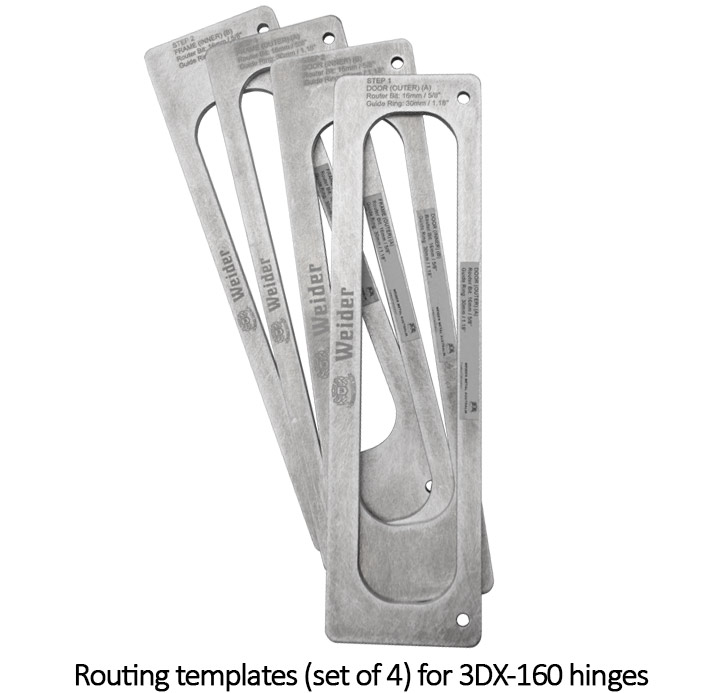

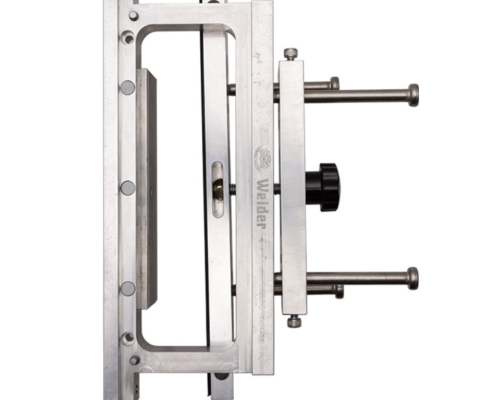

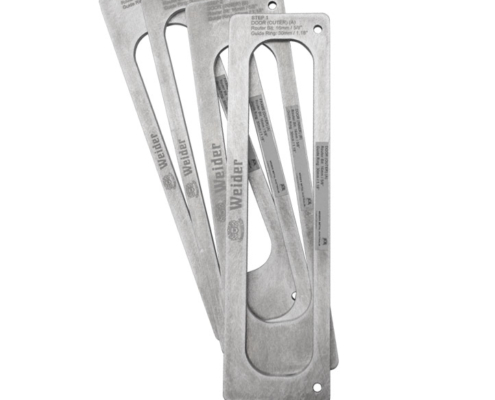

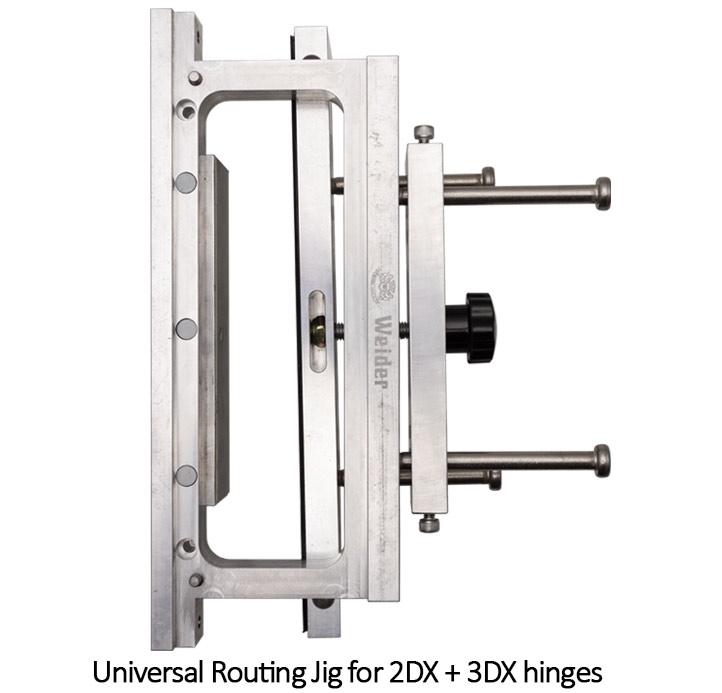

• Jigs and templates available
• Compatible with standard 1¾” door thickness
• Wood doors: 1.26” (32mm) min thickness. Metal doors: 1.10” (28mm) min thickness.
• Custom colors cover the surfaces visible after installation
• Screw cover plates included

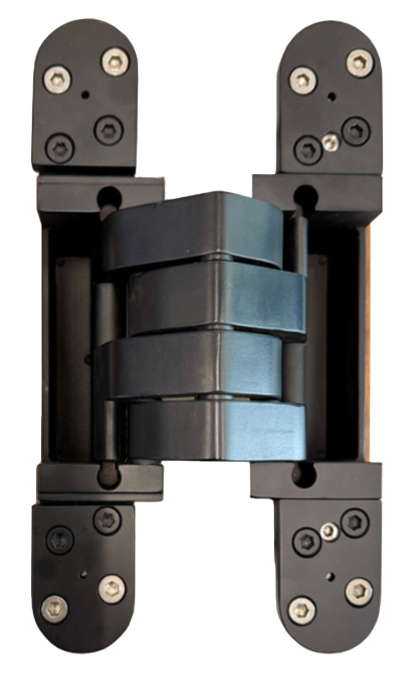

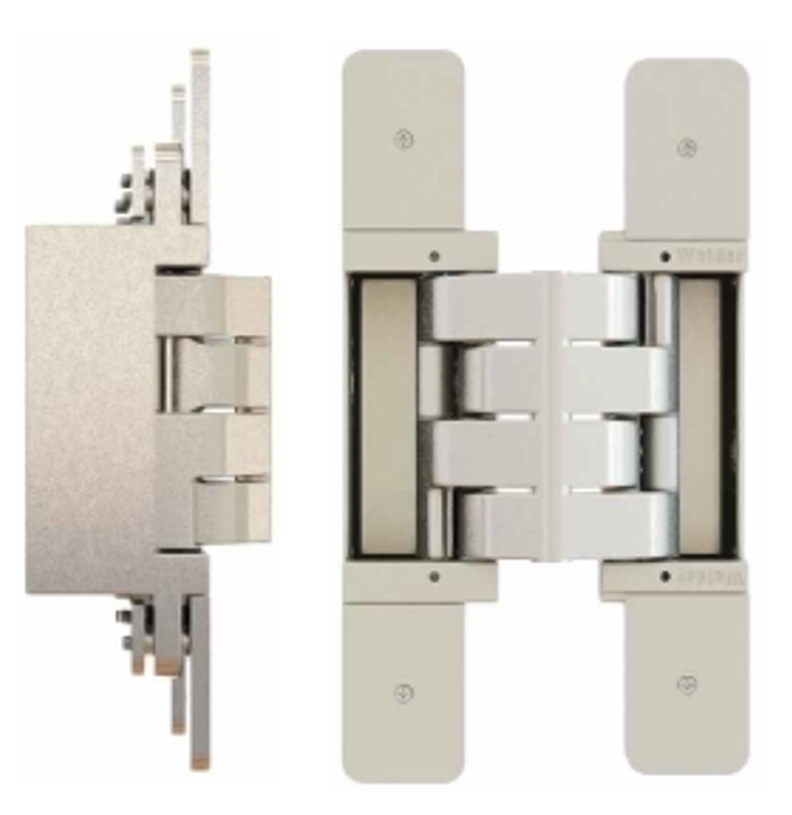

Concealed Hinges for Cladding

• This is the most robust and heavy-duty cladding hinge available
• 3DX concealed hinges for cladding are for doors of wood or metal material
• Version 300 weight capacity up to 300kg (661 lbs) per 2 hinges
• Version 200 weight capacity up to 200kg (440 lbs) per 2 hinges
• Suitable for cladding 4-12mm, and up to 16mm with chamfered edge
• 3-dimensional adjustability
• Meets Fire Rated requirements BS EN 1634
• Meets requirement of BS EN1935; 200,000 cycles

Advantages

• Premium quality, precision & durability
• Sound-insulating hinges
• Anti-twist and anti-pull construction prevents sagging and twisting during adjustments
• Self-closing hinge option eliminates need for surface-mount door closer (less hardware and cleaner look)
• How do stainless steel hinges save on project cost? With higher quality hinges, less hinges per door are possible, and less repair & replacement occurs from sagging, bending, and warping doors

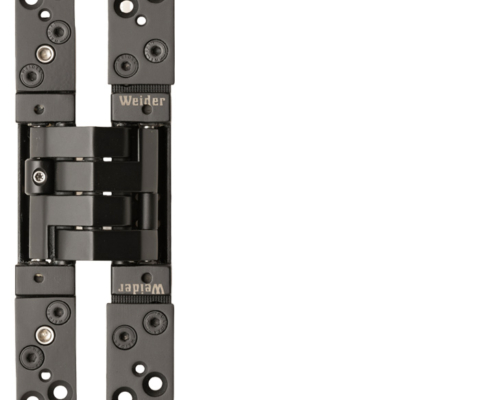

• Finishes: Black & Stainless stocked-in-USA; 28 by special order

Four Functions
1. Free-Swinging
2. Self-Closing
3. Hold Open
4. Self-Closing and Hold Open on the same door!

Many finish and coating options available. Contact FFI for details.
