Imago++ Lift Slide Door Hardware

About Imago++

Imago++ lift and slide door of the Imago family by AGB, with its range of extremely reduced accessories represents an advanced response to this trend, offering exceptional performance in terms of smoothness, living comfort, thermal insulation and safety even in the case of large openings.

A thinner frame, subtle profiles, large glass surfaces and more space for natural light: Imago++ was born as an advanced hardware system for minimal lift-and-slide doors, designed for applications in wood, wood-aluminium, aluminium and steel.

Characteristics

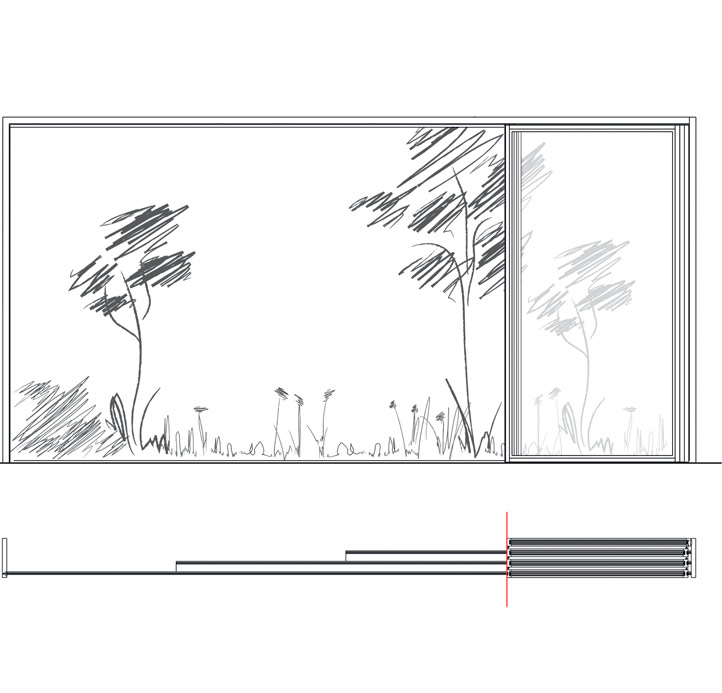

Slimmer profiles allowing more glass and light (10% frame, 90% glass)
50mm minimal profile on 4 sides of sash (even the bottom rail)

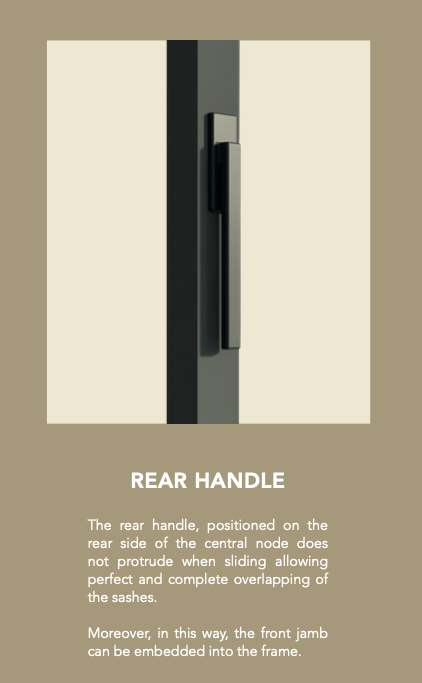

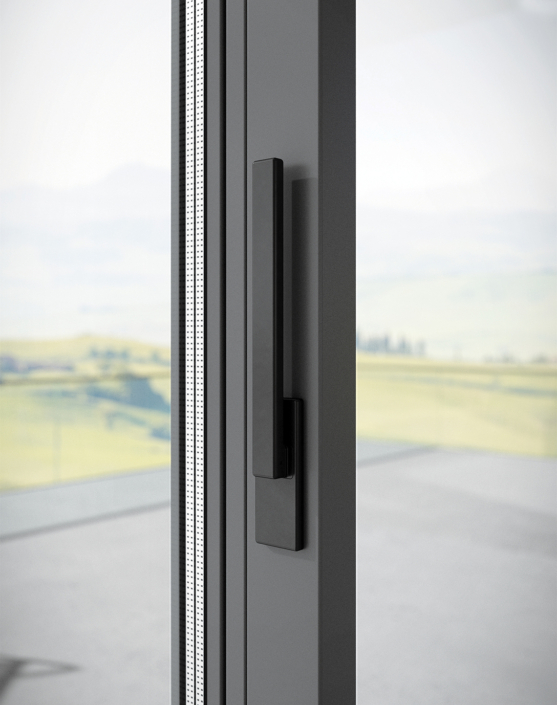

Sleek handle, set on the stile’s edge, for a uniquely clean look and flush face
Integrates with Climatech low threshold track system

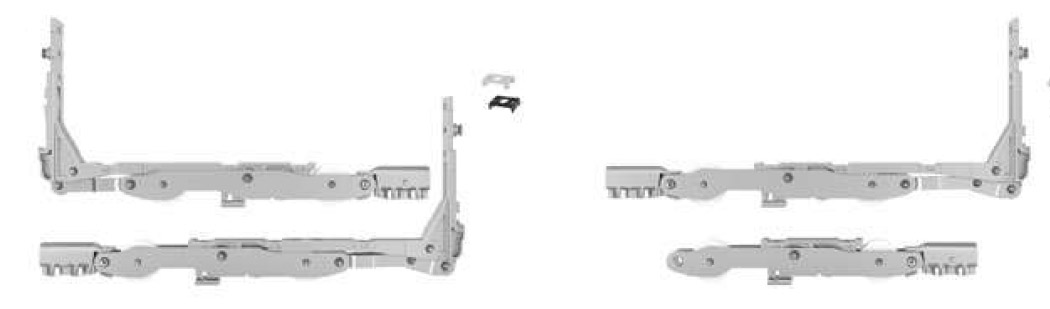

Concealed carriages
For wood or aluminum panels
For sash thicknesses 68, 78 or 92mm
Panel layouts XO or OXXO
Panel weights up to 400kg

Advantages

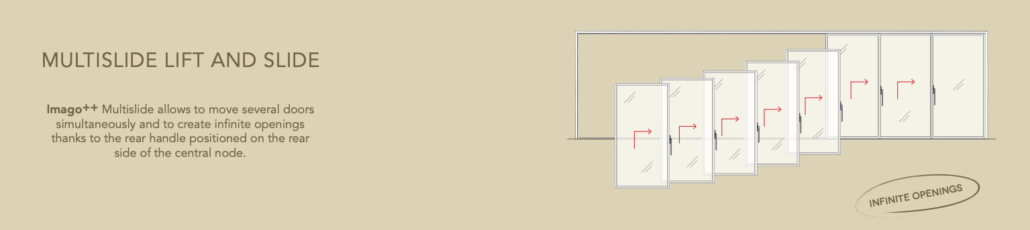

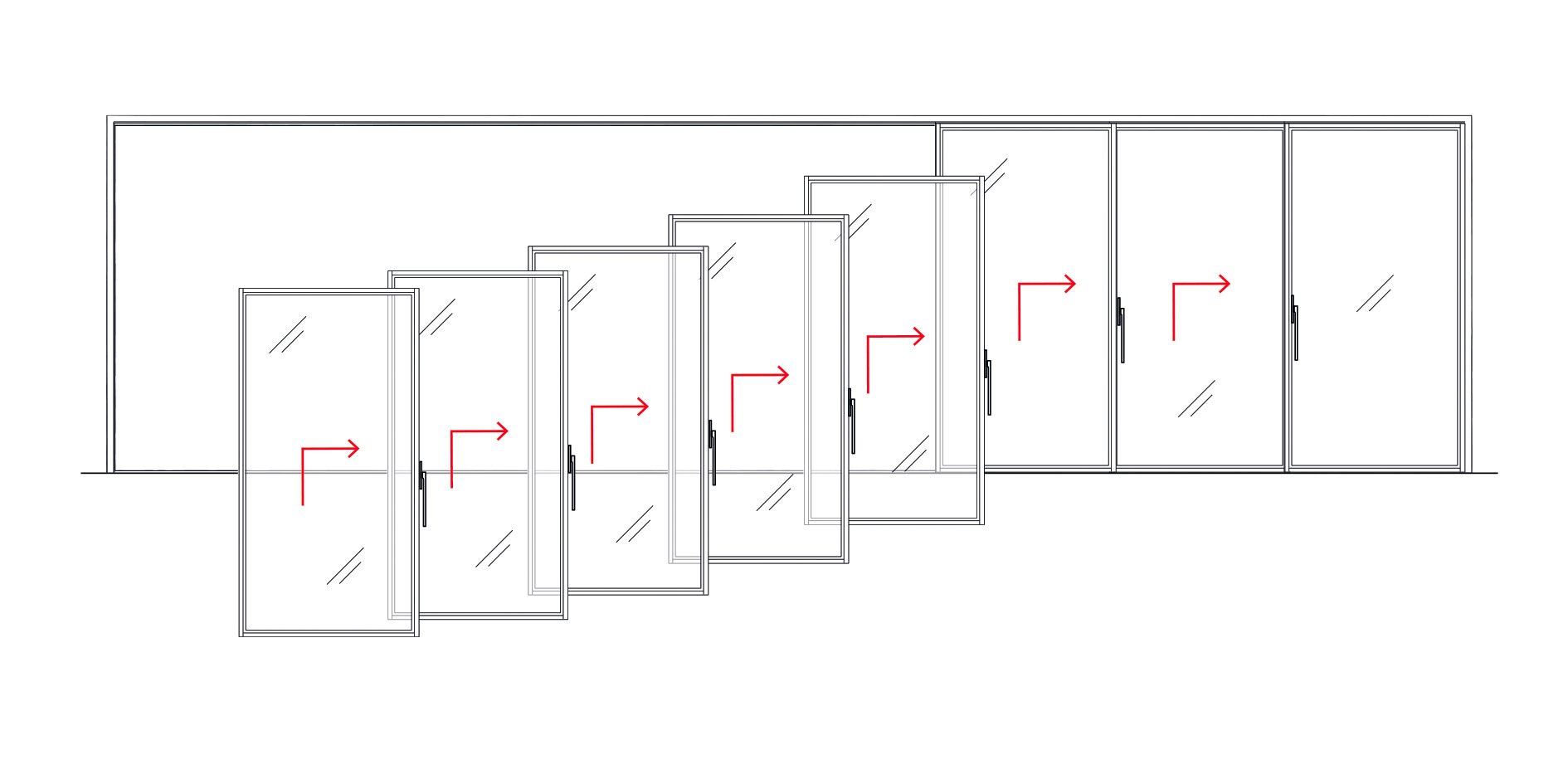

The main novelty of this system is the positioning of the handle compared to traditional lift-and-slide doors. Placed laterally at the central node, the handle does not clutter the sliding phase of the doors and does not interfere with their folding, thus allowing the creation of multi-leaf opening patterns with total overlap.

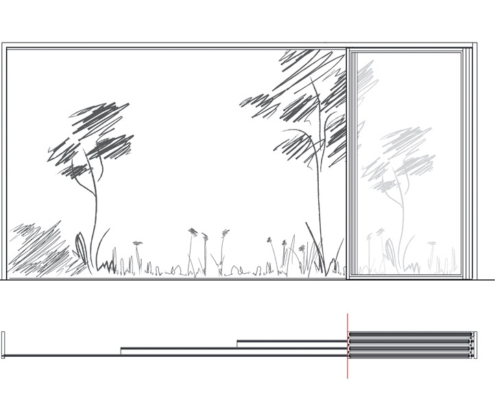

Imago++ guarantees unprecedented flexibility in the design of living spaces. With the same size of the architectural hole, Imago++ allows you to obtain larger opening surfaces by creating windows with two, three, four or more sliding leaves, ensuring perfect alignment of the opening panels.
