Lift Slide Door Hardware

Highest quality hardware available, highly corrosion-resistant with Premium 304 or Standard 430 grade stainless steel.

FFI UltraVue Lift Slide

Low profile carriages for minimal sight lines
Adjustable carriage kit (+/-3mm) and lift slide gears.
Available in Premium 304 SST and PVDF (Kynar)/Koflux-coated body. 3000+ hours corrosion resistance.

Up to 440 lbs per panel with 2 rollers
Up to 880 lbs per panel with 4 rollers

FFI Signature Lift Slide

Adjustable carriage kit (+/-3mm) and lift slide gears
Available in Premium 304 or Standard 430 grade SST and PVDF (Kynar)/Koflux-coated body. 3000+ hours corrosion resistance. Up to 1320 lbs per panel with 4 rollers at 15,000 cycles.

Up to 660 lbs per panel with 2 rollers
Up to 880 lbs per panel with 4 rollers

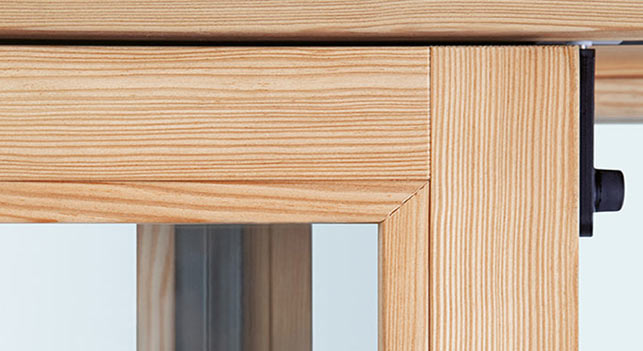

AGB XC Lift Slide

Carriage and door gears, corrosion resistant Activage finish (2000+ hours corrosion resistance).

Up to 660 lbs per panel with 2 rollers
Up to 880 lbs per panel with 4 rollers

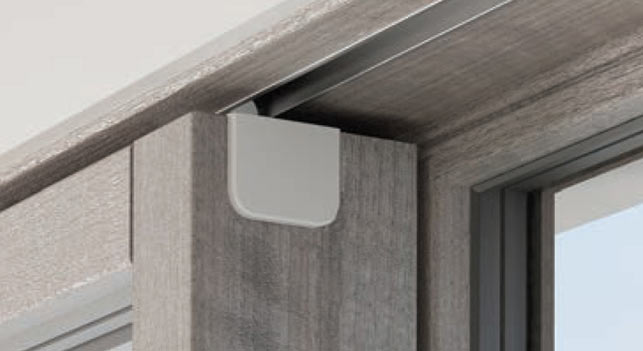

AGB Imago+ Lift Slide

Slimmer profile, wider openings. with big and heavy sashes up to 400 Kg with minimal profiles: the lower transom has been reduced to 50 mm.

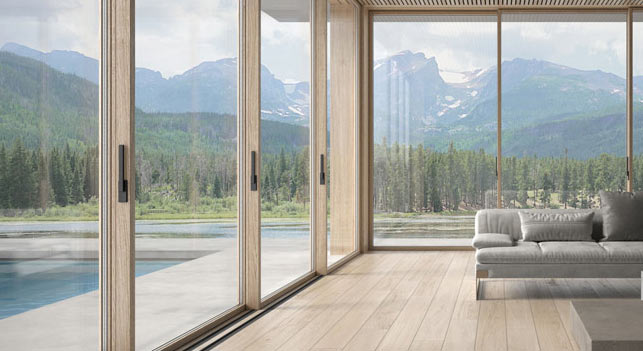

AGB Imago++ Lift Slide

Imago++ lift and slide door of the Imago family by AGB, with its range of extremely reduced accessories represents an advanced response to this trend, offering exceptional performance in terms of smoothness, living comfort, thermal insulation and safety even in the case of large openings.

Clearlift Lift Slide Door

Carriage and door gears, for Reynaers CP130 aluminum door profiles

Up to 300 kg sash weight

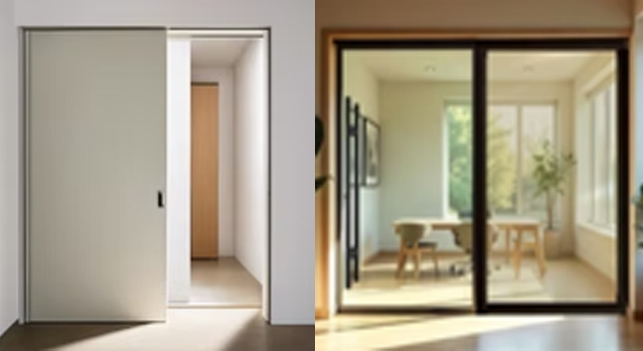

Top Hung Sliding Door Hardware

Tracks in Class I anodized aluminum or 316-L marine grade stainless steel. Carriages align with track in unique slanted design for superior durability and operation. For 81-1,300 lbs. sliding panels, room dividers, screens and storm shutters, marine environments, and more.

ALU Series

Superior durability from better wheels and Class I anodized aluminum track. Wheel and track system is self-cleaning and self-plumbing. For up to 330 lbs. sliding panels.

ALU Series Glass

Class I anodized aluminum track, made in USA. Wheel and track system is self-cleaning and self-plumbing. Glass clamp accommodates 6-12mm thick glass panels. For sliding glass panels up to 275 lbs.

Top Flight SST

316-L marine grade stainless steel, for ultimate corrosion resistance. Delrin wheels provide high strength, dimensional stability and overall durability. Low friction and wear resistance, Delrin wheels offer chemical resistance as well as crack and deformation resistance.

Bi-Fold Hardware

304 series and 316-L marine grade stainless steel track and carriages. Carriages available with quiet PETP wheels and centered ball bearings for smooth operation. Maximum weight per meter of track: Up to 450 lbs.

Clearspan Bi-Fold Hardware

GreenteQ Clearspan Bi-fold systems for aluminum doors. For Visifold 1000, Reynaers CF 68, and other profiles

Tracks and Guides

Available in Class I anodized aluminum, 304 grade stainless steel. 5mm and 6mm diameter available for every sliding panel application. FASTrack Drainage available for ultimate protection.

FASTrack Adjustable Track System

Adjustable floor track for multiple sliding panels. A complete modular system to meet almost any project requirement. Built from corrosion-resistant materials. Can be configured as 5mm or 6mm diameter track.

FASTrack Drainage System

Functional Fenestration Inc is proud to offer the aluminum FASTrack Drainage System. A flexible solution to water diversion from your door opening. Track diameter: 5mm.

Interlock Drainage Kit

A flexible interlock drainage solution to water diversion from your door opening.

5mm Lift Slide Track

5mm Class I anodized aluminum track, made in USA. Available in low-profile or high-profile design.

Top Guides

Available as Made in USA with Class I anodized aluminum or European made Class II anodized aluminum, for any type of door arrangement with any number of sliding panels or thicknesses.

Climatech System

Made from durable composite material, fiberglass-reinforced to ensure optimal strength, thermal resistance, excellent insulation and scratch resistance. Available in Brown RAL 8019 or Grey RAL 7035.

Thermal Break Threshold

Low profile threshold with high-bottom track and thermal break for optimal weather protection. Made from Class II anodized aluminum.  Available in Silver or Dark Bronze (Black) anodized.

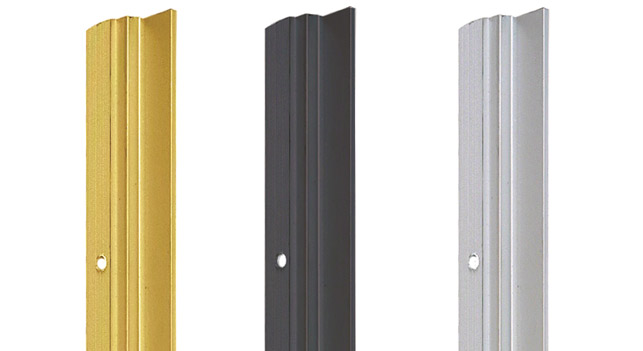

Panel Interlocks

Available for multi-panel applications with various air gaps. Uni-V Interlock offers wide milling tolerances for easy panel alignment.

Uni-V Panel Gap Interlock

Uni-V Interlock for all types sliding panels with 2 or more panels on a track (lift slide, patio doors, room dividers, etc.) with 28mm air gap. Features easy panel alignment with wide milling tolerances.

FFI Panel Interlocks

Durable brass or aluminum (Class I anodized) for long life corrosion resistance. For wood or aluminum clad wood panels with 12-15mm air gap. Provides additional strength between panels for hurricane testing.

Patio and Multi-Slide Rollers

Available for every sliding panel application. Adjustable stainless steel twin roller is available in 430 grade SST and features +/-3mm panel adjustment.

Adjustable SST Twin Roller

Adjustable twin roller available in 430 grade SST. Height adjustment +/-3mm for panels up to 660 lbs per 2-roller set up. For 5mm diameter track.

SST Screen Panel Roller

304 Stainless steel roller for panels up to 220 lbs per 2-roller set up. For 5mm diameter track.

Slider Door Locks

Many options available for every application.

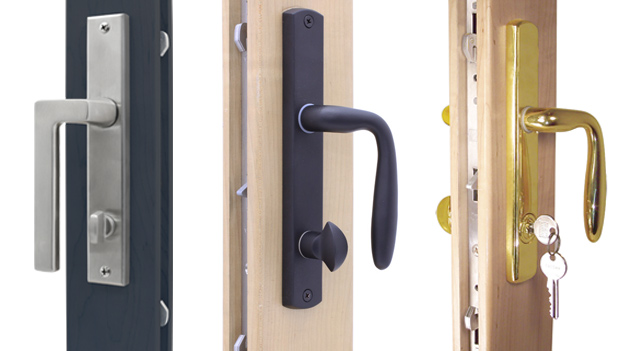

Winkhaus Slider Door Locks

Recommended for wood, fiberglass, aluminum or vinyl exterior doors. Spring-loaded double hooks automatically latch behind strike plate.

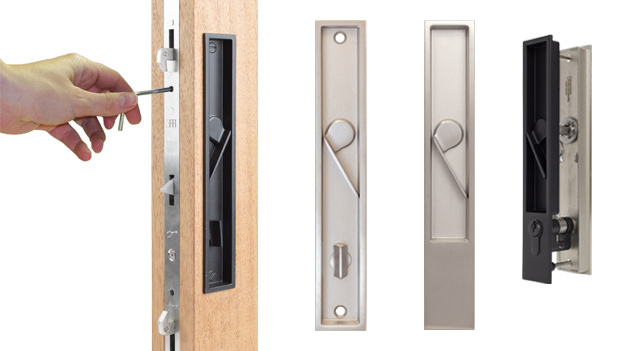

Clearslide Sliding Door Locks

GreenteQ Clearslide System for Sliding Doors.  Compatible with wood and PVCu inline sashes (strikes available). Made from 430 stainless steel lock, with a 120kg max sash weight

AGB Touch Magnetic Locks

Magnetic door catcher for interior swing-doors, sliding doors and screen.

Anti Derailer Lock

Provides additional strength in locking points. Recommended for door performance certification testing.

Anti Derailer Lock

Provides additional strength in locking points, offers two positions when locking; 9/16″ & 3/4″. Stainless Steel 304 Grade for corrosion resistance; Coastal ready

Swing Door Locks

Multipoint locking gears for the highest quality fenestration.

Sentinel Automatic Door

Automatic multipoint lock, designed to protect your doors like a true sentinel.

Unitop Multipoint Locking Gears

Lever-driven locks, for patio and balcony doors, activated by lifting door lever to engage the lock points. Backsets from 25 to 55mm.

Sicurtop Multipoint Locking Gears

Gear-driven shootbolt locks for single doors, entry or commercial, activated by turning a cylinder. Backsets from 35 to 80mm.

greenteQ Q-Bolt Door Lock

Multipoint door lock system featuring chamfered security hooks that lock out securely in opposing directions. Backsets from 35 or 45mm.

Door Hinges

Available in various styles and finishes.

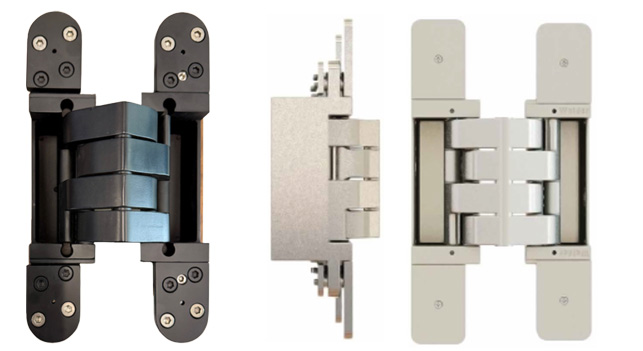

Stainless Steel Concealed Hinges

Stainless Steel concealed hinges, soft-close and hold-open features available.

Eclipse Concealed Hinges

Concealed hinges for interior use, multiple finishes available.

Adjustar 3D Hinges

20mm finial diameter, adjustable in all three directions; height, inclination and gasket pressure.

Zenit Hinges

16 and 20mm finial diameter, threaded pins, pitch 1.8. Vertical, horizontal and pressure adjustment.

3D Adjustable Hinges

3D stainless steel screw hinges are coated inside with self lubricating plastic. 16 and 20mm finial diameter, threaded pins.

Rely on FFI
Serving the North American fenestration community since 1987. Functional Fenestration Inc (FFI) provides high quality architectural hardware and automation solutions to the fenestration (door, window & skylight) industry.
