Sicurtop Multipoint Door Systems

Why Multipoint?

European multipoint door locks help meet architectural demands for large openings, secure alignment, warp-prevention and hurricane testing.

Sicurtop Multipoint Door Systems

Why Multipoint?

European multipoint door locks help meet architectural demands for large openings, secure alignment, warp-prevention and hurricane testing.

Sicurtop Multipoint Door Systems

Why Multipoint?

European multipoint door locks help meet architectural demands for large openings, secure alignment, warp-prevention and hurricane testing.

Characteristics

Multipoints help prevent warping even for very tall sashes, up to 12 feet.
Optional Shootbolts maximize security and minimize warping.
Optional adjustable roller cams align the door as it locks.
Mushroom cam option for extra strength in testing
Non-handed latch is easily reversible tapered for smooth operation.
Cold-forged steel for extra strength
Standard 16mm Eurogroove is same for many brands
Activeage finish – tested to 2,000+ hours corrosion-resistance
Manufactured in Italy, in ISO 9001 quality controlled factory.

Advantages

For single swinging or sliding doors. Can be used with french doors by using Poseidon on active door and flush bolt on floor. Lifting the lever activates all lock points simultaneously. Cylinders and handles available, see Catalog H.

Locking Points

Standard Shootbolt
A common solution for french doors, using a 2-point shoot-bolt on the inactive door, and 3-point shootbolt and deadbolt on the active door.

Cam
A solution recommended for security and alignment; best for single doors.

Shootbolt (Round Profile)
Long throw (20mm) shootbolt recommended for maximum performance. Recommended to meet hurricane testing.

Roller Cam & Bolt
The locking cam completes its run before the bolt slides out. This way the uprights are perfectly aligned, preventing any friction when the bolt slides out

Mushroom Cam
A higher strength feature, for security for hurricane or other testing.

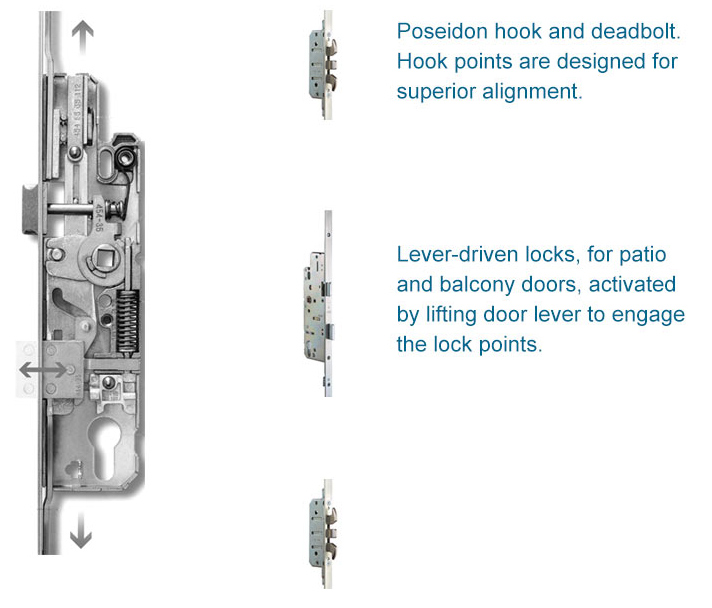

Hook & Deadbolt – Poseidon
For single doors; in lever-driven and gear-driven versions; hook lock points are designed for superior alignment.

Locking Points

Standard Shootbolt
A common solution for french doors, using a 2-point shoot-bolt on the inactive door, and 3-point shootbolt and deadbolt on the active door.

Cam
A solution recommended for security and alignment; best for single doors.

Shootbolt (Round Profile)
Long throw (20mm) shootbolt recommended for maximum performance. Recommended to meet hurricane testing.

Roller Cam & Bolt
The locking cam completes its run before the bolt slides out. This way the uprights are perfectly aligned, preventing any friction when the bolt slides out
