LS400 Cascade Flush Handle
Why the LS400?
  • Solid 304 grade stainless steel
  • Small footprint dimensions: 15¼"H x 2"W
  • Hand assembly sits flush into stile, allowing panel pocketing
  • Compatible with lift slide gears with 10mm square spindle hub
  • Handle extends to 8⅞" length for easy operation
  • For wood doors, 37.5mm backset
Finish Options

Contact FFI Sales for display board availability for your showroom today!

LS400 Cascade Flush Handle
Why the LS400?
  • Solid 304 grade stainless steel
  • Small footprint dimensions: 15¼"H x 2"W
  • Hand assembly sits flush into stile, allowing panel pocketing
  • Compatible with lift slide gears with 10mm square spindle hub
  • Handle extends to 8⅞" length for easy operation
  • For wood doors, 37.5mm backset
Finish Options

Contact FFI Sales for display board availability for your showroom today!

LS400 Cascade Flush Handle
Why the LS400?
  • Solid 304 grade stainless steel
  • Small footprint dimensions: 15¼"H x 2"W
  • Hand assembly sits flush into stile, allowing panel pocketing
  • Compatible with lift slide gears with 10mm square spindle hub
  • Handle extends to 8⅞" length for easy operation
  • For wood doors, 37.5mm backset
Finish Options

Contact FFI Sales for display board availability for your showroom today!

Menu
Applications
  • For wood door 37.5mm backset
  • Door thickness: 2¼” (56mm) or 2¾” (68mm)
  • Compatible with: lift slide gears with 10 mm square spindle hub.
  • Lift Slide doors, any layout configuration.
  • In multi-panel lift slides, the flush handle allows the panels to stack closely together (into a wall pocket or against a jamb).
Features
  • Patented design
  • Handle assembly sits flush into trim, allowing panel pocketing
  • Matching flush pull available separately
  • Stainless steel 304 grade

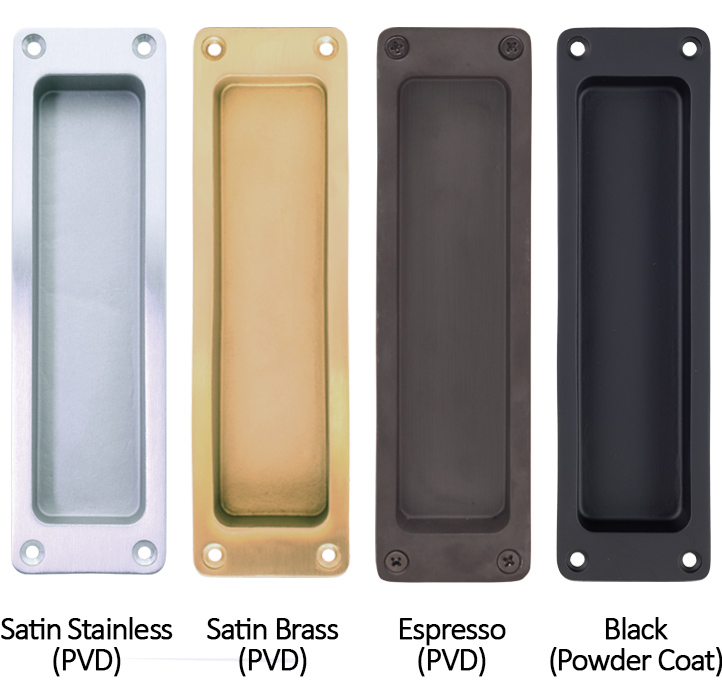

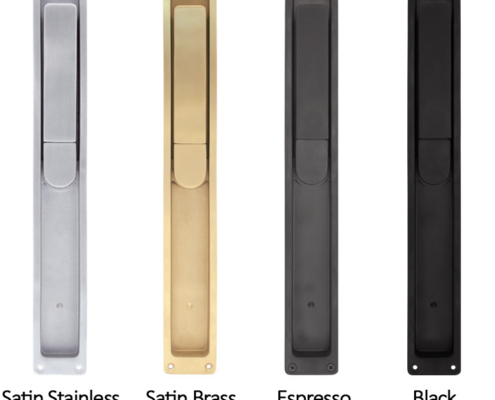

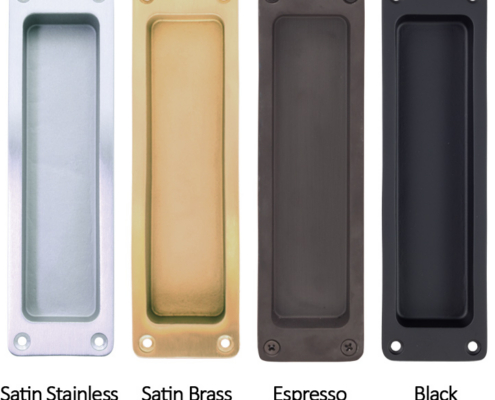

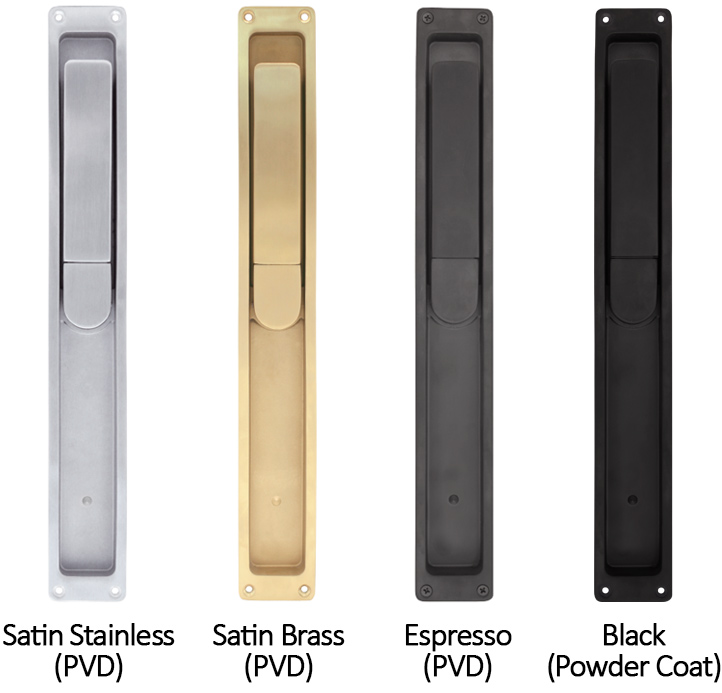

  • Finishes: Satin Stainless (PVD), Satin Brass (PVD) and Espresso (PVD) finishes
  • Stainless steel 10mm square spindles
  • Matching pulls
Documentation

Catalog H

Cascade Flyer

Installation Guide

SST Maintenance

Architectural Spec

Let’s Get Started

Want CAD files or BOM Calculator? No problem!
